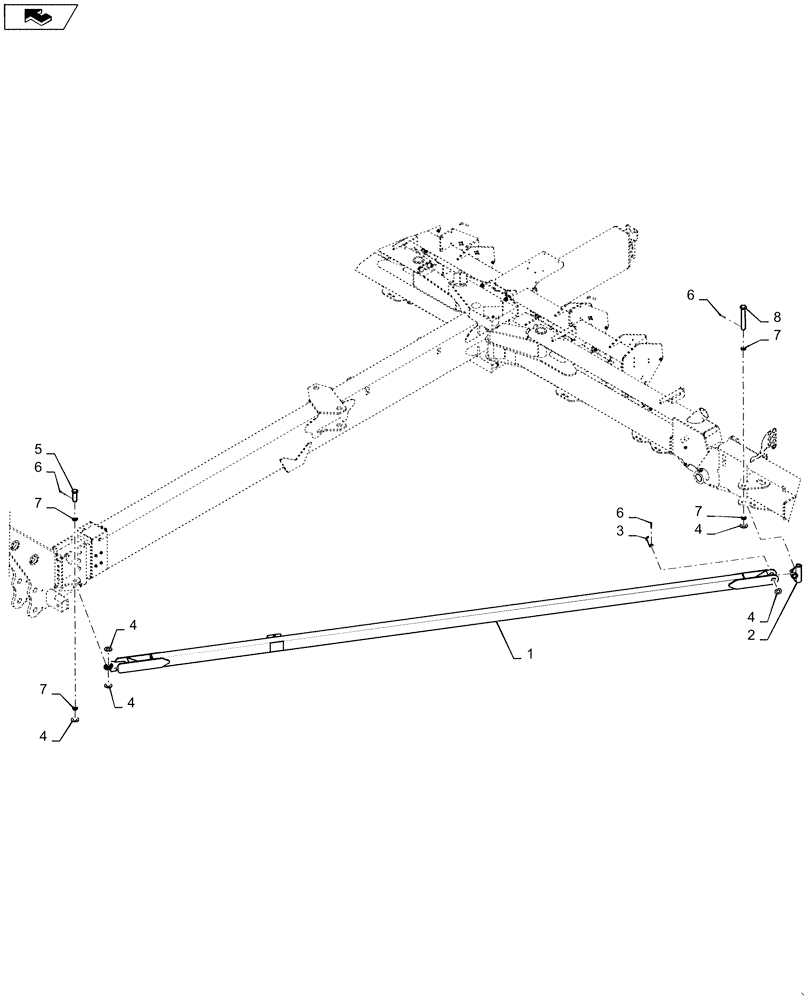

Запчасти Case IH 1255 (39.100.AN[01]) - DRAFT TUBES FOR 24 ROW (39) - FRAMES AND BALLASTING

1

87659534

TUBE

Draft, Left Painted Red, Incl Reflector

1шт.

1

87659533

TUBE

Draft, Right Painted Red, Incl Reflector

1шт.

2

87614089

KNUCKLE JOINT

Draft Tube

2шт.

3

87575681

HEADED PIN

1.25 x 4.800 Gr 5

2шт.

4

87023158

WASHER,1.31" ID x 2.5" OD x 0.15" Thk

1.312 x 2.500 x .150

10шт.

5

87575682

HEADED PIN

1.25 x 3.800 Gr 5

2шт.

6

88182

COTTER PIN,1/4" OD x 2" L

6шт.

7

87504524

BUSHING

Tension

8шт.

8

87575683

HEADED PIN

1.25 x 8.750 Gr 5

2шт.
