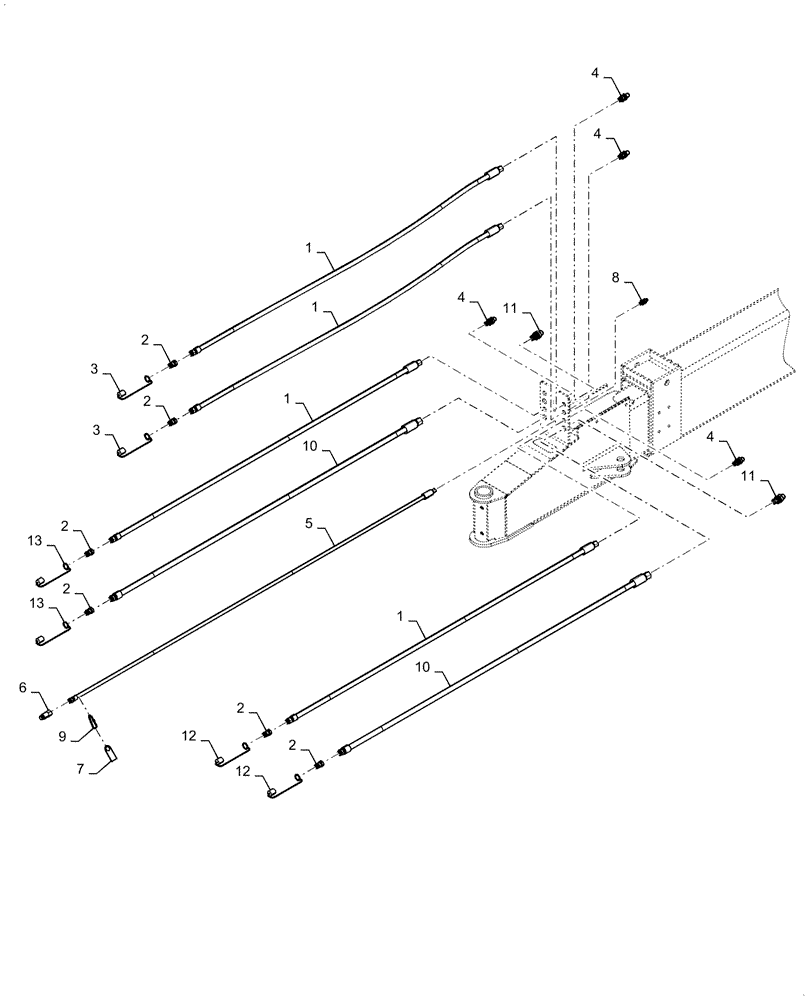

Запчасти Case IH 1255 (35.780.AD[01]) - TRACTOR HYDRAULIC HOSES FOR 24 ROW 2POINT HITCH (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case IH 1255 - (35.780.AD[01]) - TRACTOR HYDRAULIC HOSES FOR 24 ROW 2POINT HITCH (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/caseih/5406489.png)
5
7
3
4
2
4
1
1
12
4
1
12
1
6
11
10
2
13
2
2
2
13
8
11
2
9
10
4
3
№
Артикул
Название
Примечание
Количество
1
47446570
HOSE
(16mm ID x 2720mm Long)
4шт.
3
333721A1
CAP
Quick Coupler, Red
2шт.
4
9610690
FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree
4шт.
5
47456333
HOSE
(10mm ID x 2795mm Long)
1шт.
7
47432848
DECAL
Important, Tag Case Drain
1шт.
8
86513087
FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree
1шт.
9
6033
CABLE TIE,6"
1шт.
10
47456339
HOSE
(19mm ID x 2720mm Long)
2шт.
11
86508629
FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree
2шт.
12
333717A1
CAP
Quick Coupler, Blue
2шт.
13
333722A1
CAP
Quick Coupler, Green
2шт.
Выбрано товаров: 13
