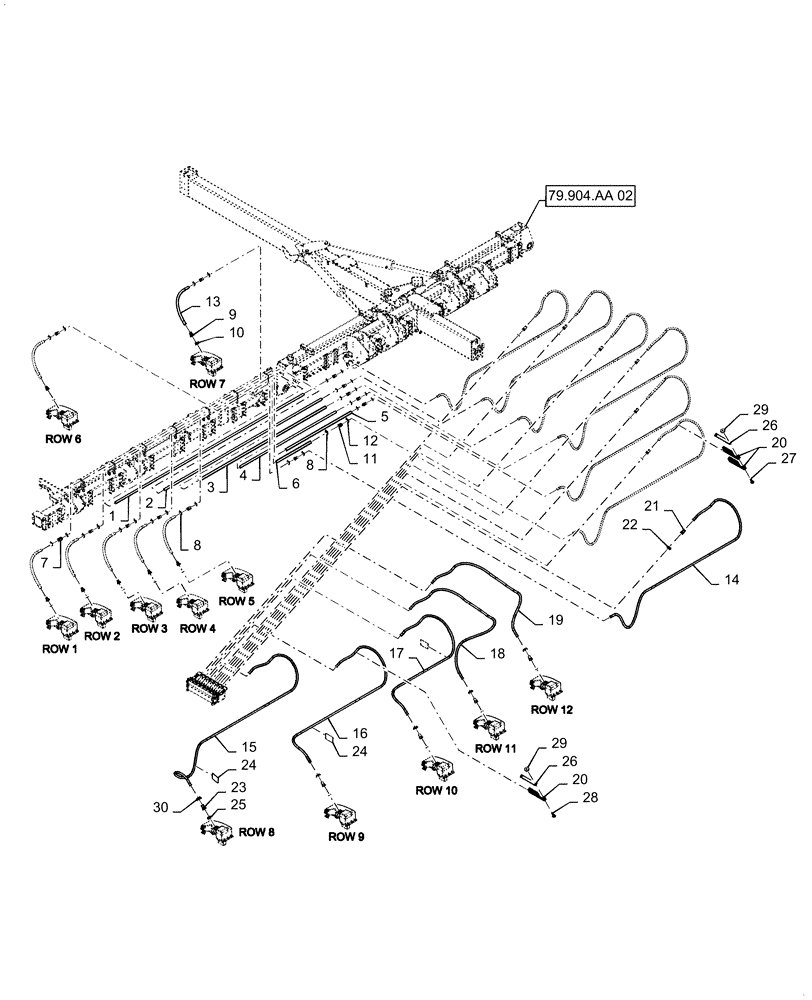

Запчасти Case IH 1255 (79.904.AA[01]) - BULK FILL , DELIVERY PIPE AND HOSES (79) - PLANTING

1

84519696

PIPE

Bulk Fill Seed 1.265" ID x 4674 mm

2шт.

2

84519698

PIPE

Bulk Fill Seed 1.265" ID x 3912 mm

2шт.

3

84519699

PIPE

Bulk Fill Seed 1.265" ID x 3150 mm

2шт.

4

84519700

PIPE

Bulk Fill Seed 1.265" ID x 2388 mm

2шт.

5

84519703

PIPE

Bulk Fill Seed 1.265" ID x 1626 mm

2шт.

6

84523866

PIPE

Bulk Fill Seed 1.265" ID x 860 mm

2шт.

7

47762230

COUPLING

Seed Hose, 1.5" x 1.5" OD

6шт.

8

47761519

CLAMP

Hose, 1 - 3/4 Wire Type

19шт.

9

84329267

COUPLING

Seed Hose, 1.25"

7шт.

10

84372879

O-RING

Seed Hose Coupling

7шт.

11

47762231

COUPLING

Seed Hose, 1.25" x 1.5" OD

7шт.

12

47761466

CLAMP

Hose, 1 - 1/2 Wire Type

7шт.

13

87483977

HOSE

PVC Black, 1.25" ID x 1100 mm

1шт.

14

87483976

HOSE

PVC Black, 1.0" ID x 5350 mm

1шт.

100' In Length

1шт.

15

87483976

HOSE

PVC Black, 1.0" ID x 5105 mm

1шт.

16

87483976

HOSE

PVC Black, 1.0" ID x 4080 mm

1шт.

17

87483976

HOSE

PVC Black, 1.0" ID x 3378 mm

1шт.

18

87483976

HOSE

PVC Black, 1.0" ID x 3560 mm

1шт.

19

87483976

HOSE

PVC Black, 1.0" ID x 3000 mm

1шт.

20

84496356

CLAMP

Hose, 1.25" OD

14шт.

21

84487943

COUPLING

Inductor, 1"

24шт.

22

47616492

O-RING

Inductor Coupling

24шт.

23

84396735

QUICK MALE COUPLING

1" Seed Hose

10шт.

24

291207C1

CLAMP

Strap Hose Tie, Large

8шт.

25

84372879

O-RING

Seed Hose Coupling

15шт.

26

84428298

SUPPORT

Bulk Fill Clamp, Painted Red

5шт.

27

84569162

FLANGE BOLT

4шт.

28

87622775

FLANGE BOLT

6шт.

29

86521605

FLANGE NUT,5/16"-18, Cl 5

10шт.

30

47591098

BOOT

Hose Coupling

10шт.
