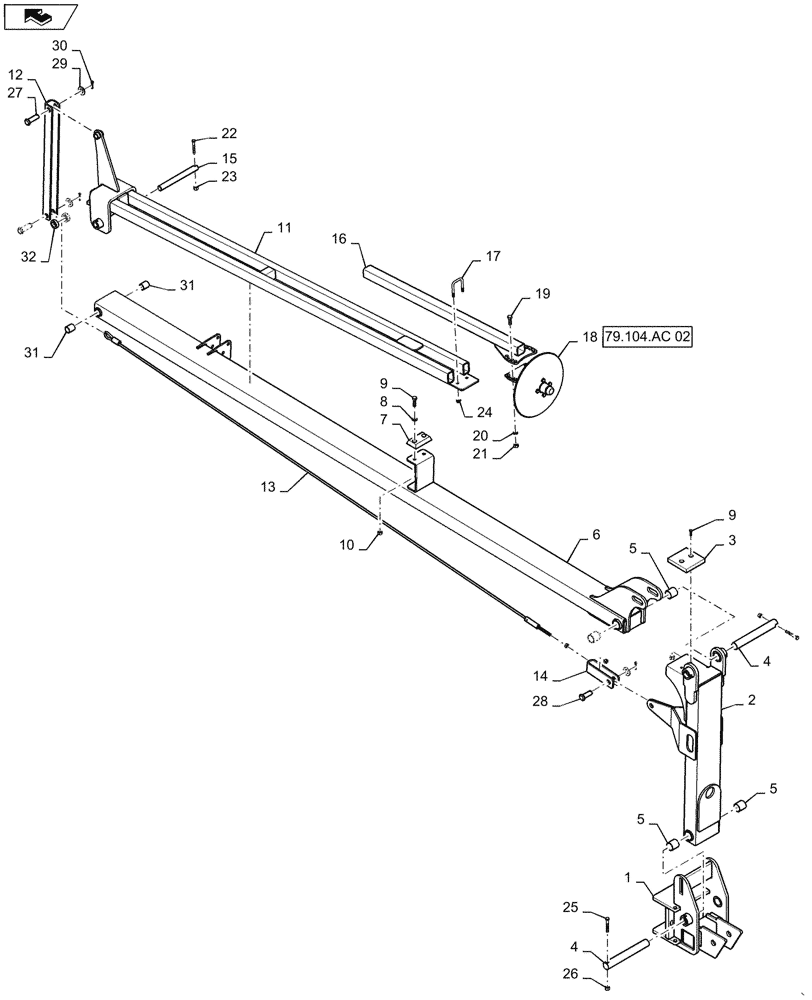

Запчасти Case IH 1255 (79.104.AB[01]) - MARKER LEFT FOR 24 ROW (79) - PLANTING

1

84581587

KNUCKLE

Marker Mount Left Painted Red

1шт.

2

84530069

ARM

Inner Marker Painted Red

1шт.

3

47371014

BUMPER

Marker Pad

1шт.

4

84513967

STRAIGHT PIN

Inner Marker

2шт.

5

87566586

BUSHING

1.75" ID x 2" OD

4шт.

6

84581582

ARM

Marker Middle Left Painted

1шт.

7

87505918

BUMPER

Rubber Marker

1шт.

8

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

9

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

10

9628503

NUT,3/8"-16, G5

4шт.

11

84529934

ARM

Marker Outer Painted

1шт.

12

84586134

BRACKET

Marker Kickout

1шт.

13

87589088

CABLE

Marker

1шт.

14

47447118

BRACKET

Cable Adjust

1шт.

15

84514007

PIN

Marker Outer Pivot

1шт.

16

87543302

ARM

Marker Extention

1шт.

17

1344524C1

U-BOLT

1/2 x 2 - 1/2 x 3 - 1/2"

1шт.

18

NS

NOT SERVICED

Disk Marker See Fig 79.104.AC[02]

1шт.

19

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

20

86729275

LOCK WASHER,5/8 0.634 CST ZND

2шт.

21

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

22

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

1шт.

23

87039402

NUT,3/8"-16, GB

1шт.

24

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

25

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

2шт.

26

84233543

NUT

1/2"

2шт.

27

84569159

PIN

1 x 3 - 1/4"

2шт.

28

86632567

HEADED PIN,30.14mm OD x 66.55mm L

1шт.

29

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

3шт.

30

80753

COTTER PIN,1/4" x 1 1/2"

3шт.

31

84257672

BUSHING

1.50 OD x 1.25 ID

2шт.

32

47445807

TUBE

Cable Spacer

2шт.
