Запчасти Case IH 1255 (79.103.AA[03]) - VACUUM DELIVERY HOSES CENTER FOR 24 ROW (79) - PLANTING

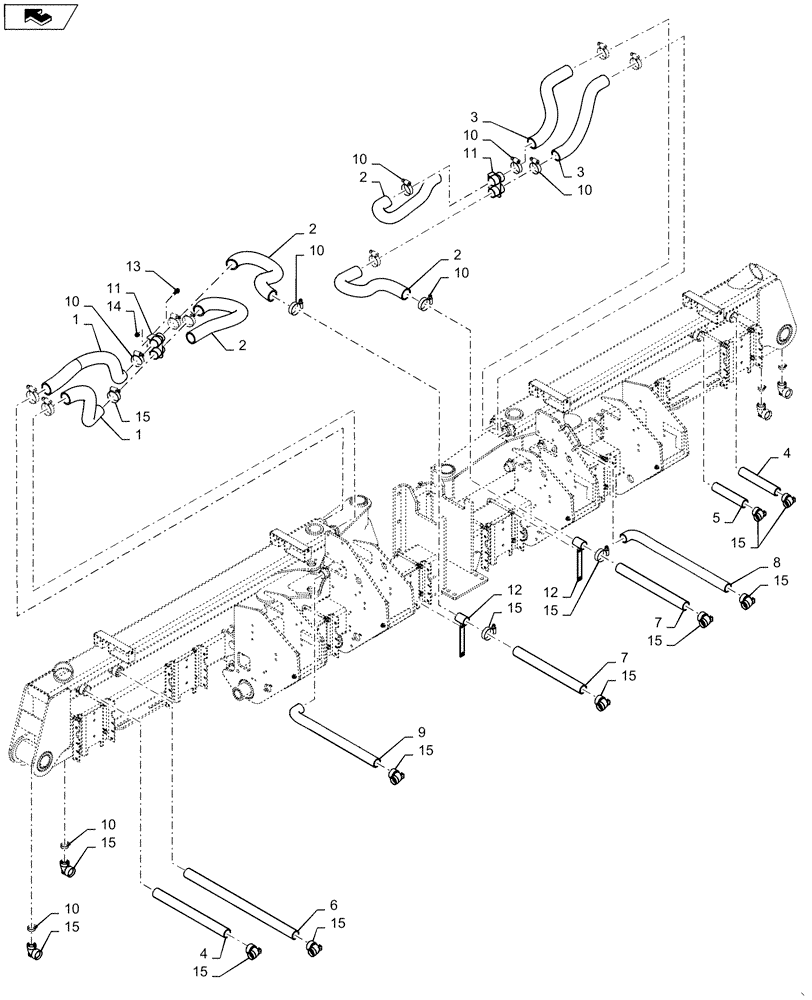

![Схема запчастей Case IH 1255 - (79.103.AA[03]) - VACUUM DELIVERY HOSES CENTER FOR 24 ROW (79) - PLANTING](https://partsell.ru/storage/images/caseih/5138366.png)
1
15
11
15
15
15
10
15
15
9
15
15
10
10
3
2
10
1
6
15
2
2
10
7
15
13
3
12
4
2
10
7
14
15
home
12
8
10
5
4
11
15
10
№
Артикул
Название
Примечание
Количество
1
87540740
HOSE,51.82 mm ID x 435.00 mm
2шт.
2
87540739
HOSE
710mm
4шт.
3
87540739
HOSE
584mm
2шт.
4
87501726
HOSE
50 Foot Bulk Hose Cut to Length 967mm
2шт.
5
87501726
HOSE
50 Foot Bulk Hose Cut to Length 1307mm
1шт.
6
87501726
HOSE
50 Foot Bulk Hose Cut to Length 1107mm
1шт.
7
87501726
HOSE
50 Foot Bulk Hose Cut to Length 927mm
2шт.
8
87501726
HOSE
50 Foot Bulk Hose Cut to Length 1190mm
1шт.
9
87501726
HOSE
50 Foot Bulk Hose Cut to Length 1307mm
1шт.
10
86050202
HOSE CLAMP,1.59” - 2.5”, Worm Gear
24шт.
11
87541135
BRACKET
Dual 2" Painted Red
2шт.
12
87541136
BRACKET
2" Hose Painted Red
2шт.
14
86521606
FLANGE NUT,Hex, 3/8" - 16, Gr 5
4шт.
15
84416530
90 ELBOW
12шт.
Выбрано товаров: 15
