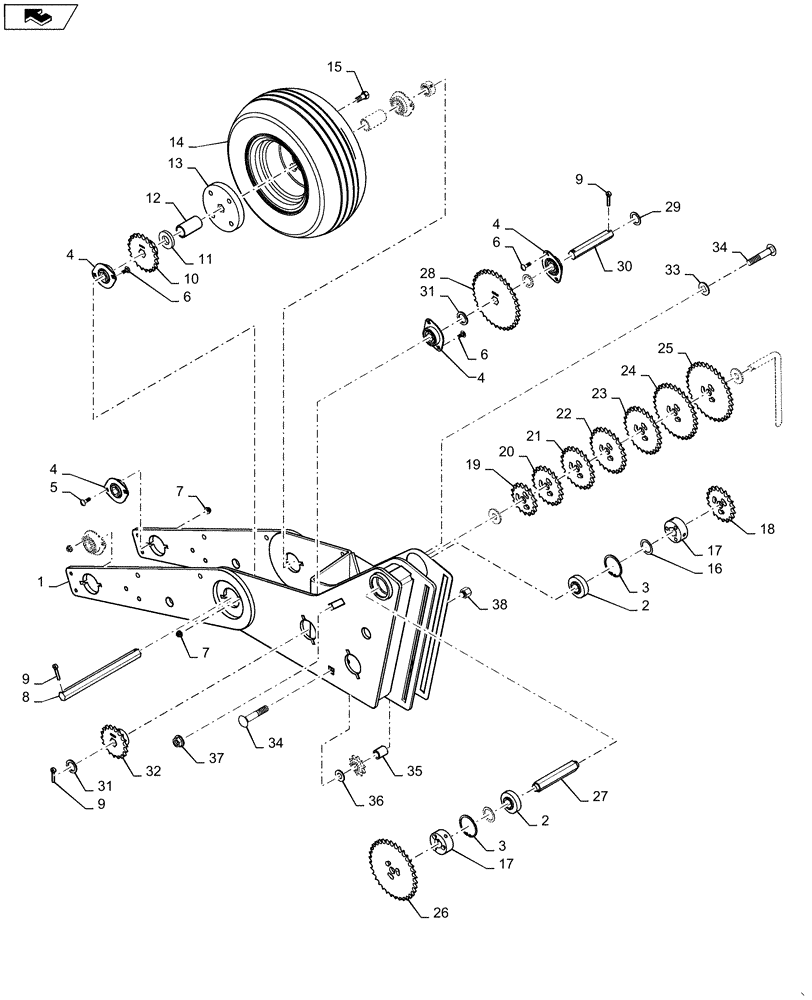

Запчасти Case IH 1255 (61.901.AA[02]) - TRANSMISSION MECHANICAL DRIVE FOR 24 ROW (61) - METERING SYSTEM

1

87637366

FRAME

Transmission

1шт.

2

87746596

BALL BEARING,1" ID x 2.44" OD

2шт.

3

100-21244

SNAP RING,2.44", Int, #244

2шт.

4

87566583

FLANGED BEARING,22.25mm ID

9шт.

5

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

6

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

14шт.

7

145458

SERRATED NUT,5/16"-18 GR 5 ZND

18шт.

8

87722128

MAIN SHAFT

Drive

1шт.

9

87402

COTTER PIN,1/4" OD x 1-1/4" OAL

4шт.

10

87610748

SPROCKET

21 Tooth

1шт.

11

5871

WASHER

1.015 ID x 2.01

2шт.

12

84211672

SPACER

Mech Trans Wheel

2шт.

13

87610588

HUB

Hex Wheel Drive

1шт.

14

PL

PROCURE LOCALLY

87610527 Tire 16.5 x 6.5 -8

1шт.

15

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

Wheel

4шт.

16

87304341

WASHER,1.27" ID x 1.75" OD x 0.03" Thk

2шт.

17

87746647

HUB

Quick Change

2шт.

18

87592207

SPROCKET

19 Tooth

1шт.

19

87592206

SPROCKET

23 Tooth

1шт.

20

87592208

SPROCKET

21 Tooth

1шт.

21

87592209

SPROCKET

23 Tooth

1шт.

22

87592210

SPROCKET

25 Tooth

1шт.

23

87592211

SPROCKET

26 Tooth

1шт.

24

87592212

SPROCKET

31 Tooth

1шт.

25

87592213

SPROCKET

33 Tooth

1шт.

26

87592214

SPROCKET

34 Tooth

1шт.

27

87746552

SHAFT

Quick Change

1шт.

28

87610749

SPROCKET

34 Tooth

1шт.

29

86624169

WASHER,1.03" ID x 1.5" OD x 0.06" Thk

3шт.

30

87722129

REVERSE SHAFT

Hex

1шт.

31

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

2шт.

32

87610744

SPROCKET

18 Tooth

1шт.

33

87613305

LOCK WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

.656 x 1.50 x .105"

1шт.

34

280563

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

2шт.

35

87629513

SPACER

Idler Sprocket

1шт.

36

86632590

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

37

84180923

FLANGE NUT

.625 Gr 5

1шт.

38

86639566

NUT,5/8"-11, GB

1шт.
