Запчасти Case IH 1255 (55.545.AA[01]) - WIRE HARNESS SEED SENSOR (55) - ELECTRICAL SYSTEMS

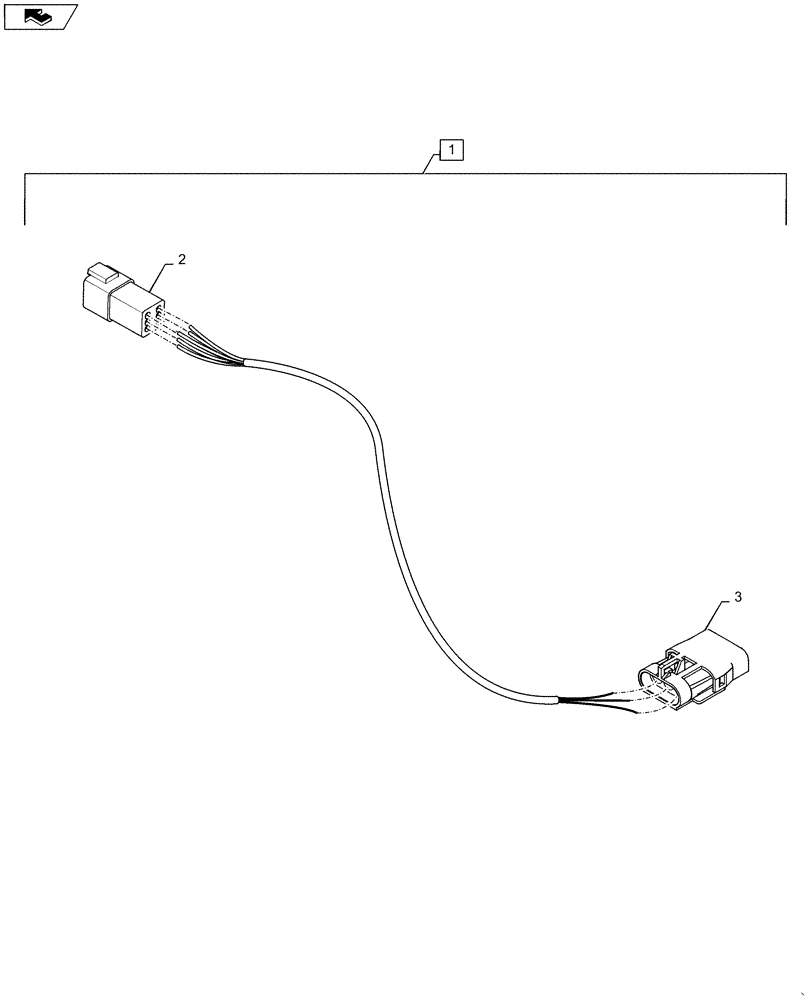

Схема запчастей Case IH 1255 - (55.545.AA[01]) - WIRE HARNESS SEED SENSOR (55) - ELECTRICAL SYSTEMS
home
3
2
1

Артикул

Название

Примечание

Количество

1

84580703

WIRE HARNESS

Seed Sensor 14" Link, Incl 2, 3

1шт.

1

84580705

WIRE HARNESS

Seed Sensor 24" Link, Incl 2, 3

1шт.

2

87700106

ELEC CONNECTOR

X-684, Row Connection

1шт.

2

84807680

PLUG

X-684, Row Connection

3шт.

2

87705583

ELEC CONNECTOR

X-684, Row Connection Lock

1шт.

2

87696141

TERMINAL

X-684, Row Connection

3шт.

3

87692858

ELEC CONNECTOR,Male

X-686, Seed Sensor

1шт.

3

87692880

CABLE TERMINAL

X-686, Seed Sensor

3шт.

3

87680701

SEAL

X-686, Seed Sensor

3шт.

Выбрано товаров: 9
