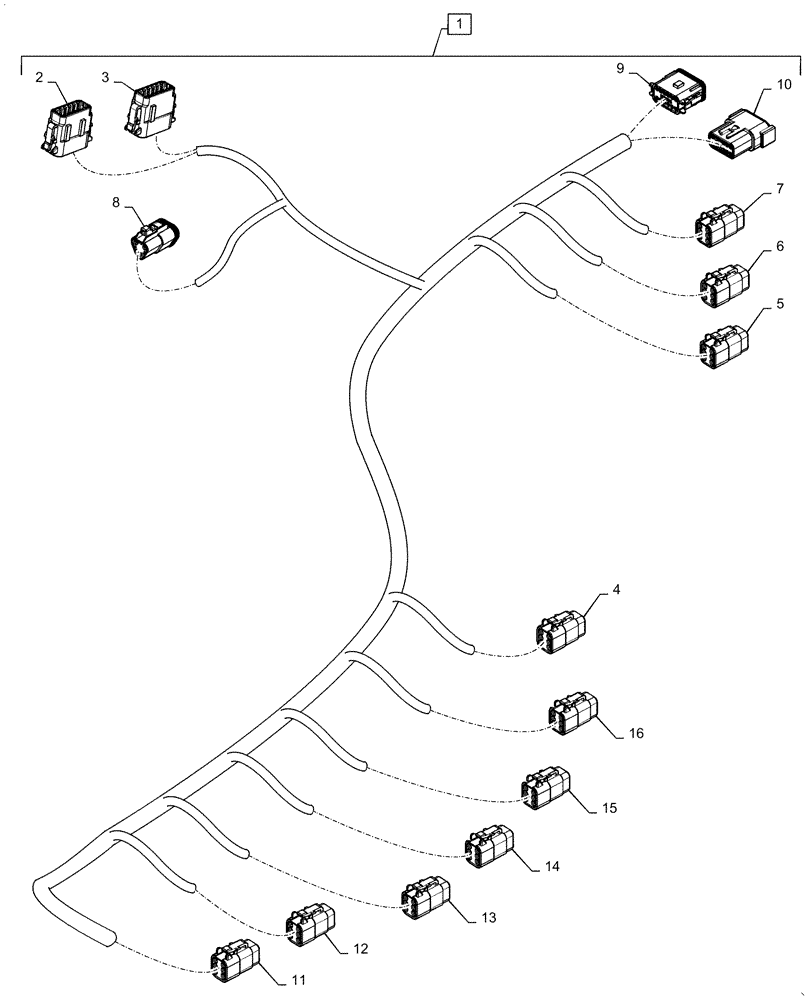

Запчасти Case IH 1255 (55.100.AA[14]) - RH, HARNESS ASSY, SEED SENSOR, 24 ROW WING (55) - ELECTRICAL SYSTEMS

1

84539982

WIRE HARNESS

Seed Sensor, 24 Row Wing, Incl 2 - 16

1шт.

2

87700156

CONTACT HOUSING,Female, 12 Pole

X-919, Seed Module A

1шт.

2

87705198

WEDGE

X-919, Seed Module A

1шт.

2

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-919, Seed Module A

12шт.

3

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

X-920, Seed Module B

1шт.

3

87705198

WEDGE

X-920, Seed Module B

1шт.

3

84807680

PLUG

X-920, Seed Module B

6шт.

3

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-920, Seed Module B

6шт.

4

87700107

ELEC CONNECTOR

X-880-7, Clutch and Seed 7/18

1шт.

4

87705582

ELEC CONNECTOR

X-880-7, Clutch and Seed 7/18

1шт.

4

84807680

PLUG

X-880-7, Clutch and Seed 7/18

1шт.

4

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-880-7, Clutch and Seed 7/18

5шт.

5

87700107

ELEC CONNECTOR

X-880-8, Clutch and Seed 8/17

1шт.

5

87705582

ELEC CONNECTOR

X-880-8, Clutch and Seed 8/17

1шт.

5

84807680

PLUG

X-880-8, Clutch and Seed 8/17

1шт.

5

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-880-8, Clutch and Seed 8/17

5шт.

6

87700107

ELEC CONNECTOR

X-880-9, Clutch and Seed 9/16

1шт.

6

87705582

ELEC CONNECTOR

X-880-9, Clutch and Seed 9/16

1шт.

6

84807680

PLUG

X-880-9, Clutch and Seed 9/16

1шт.

6

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-880-9, Clutch and Seed 9/16

5шт.

7

87700107

ELEC CONNECTOR

X-880-10, Clutch and Seed 10/15

1шт.

7

87705582

ELEC CONNECTOR

X-880-10, Clutch and Seed 10/15

1шт.

7

84807680

PLUG

X-880-10, Clutch and Seed 10/15

1шт.

7

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-880-10, Clutch and Seed 10/15

5шт.

8

84074635

CONTACT HOUSING,Female, 3 Pole

X-916, Can 2 Term

1шт.

8

84147090

LOCKING TAB,Wedge Lock

X-916, Can 2 Term

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-916, Can 2 Term

2шт.

9

87696075

ELEC CONNECTOR

X-945, Wing Clutches

1шт.

9

87695651

LOCKING TAB,Wedge Lock

X-945, Wing Clutches

1шт.

9

84068583

PLUG,12 - 16 Ga, White

X-945, Wing Clutches

1шт.

9

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X-945, Wing Clutches

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-945, Wing Clutches

10шт.

10

87700155

ELEC CONNECTOR,Female, 12 Cavities

Clutch and Seed 1/24

1шт.

10

87705582

ELEC CONNECTOR

Clutch and Seed 1/24

1шт.

10

84807680

PLUG

Clutch and Seed 1/24

1шт.

10

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Clutch and Seed 1/24

5шт.

11

87700107

ELEC CONNECTOR

Clutch and Seed 2/23

1шт.

11

87705582

ELEC CONNECTOR

Clutch and Seed 2/23

1шт.

11

84807680

PLUG

Clutch and Seed 2/23

1шт.

11

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Clutch and Seed 2/23

5шт.

12

87700107

ELEC CONNECTOR

Clutch and Seed 3/22

1шт.

12

87705582

ELEC CONNECTOR

Clutch and Seed 3/22

1шт.

12

84807680

PLUG

Clutch and Seed 3/22

1шт.

12

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Clutch and Seed 3/22

5шт.

13

87700107

ELEC CONNECTOR

Clutch and Seed 4/21

1шт.

13

87705582

ELEC CONNECTOR

Clutch and Seed 4/21

1шт.

13

84807680

PLUG

Clutch and Seed 4/21

1шт.

13

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Clutch and Seed 4/21

5шт.

14

87700107

ELEC CONNECTOR

Clutch and Seed 5/20

1шт.

14

87705582

ELEC CONNECTOR

Clutch and Seed 5/20

1шт.

14

84807680

PLUG

Clutch and Seed 5/20

1шт.

14

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Clutch and Seed 5/20

5шт.

15

87700107

ELEC CONNECTOR

Clutch and Seed 6/19

1шт.

15

87705582

ELEC CONNECTOR

Clutch and Seed 6/19

1шт.

15

84807680

PLUG

Clutch and Seed 6/19

1шт.

15

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Clutch and Seed 6/19

5шт.

16

87700107

ELEC CONNECTOR

Clutch and Seed 7/18

1шт.

16

87705582

ELEC CONNECTOR

Clutch and Seed 7/18

1шт.

16

84807680

PLUG

Clutch and Seed 7/18

1шт.

16

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Clutch and Seed 7/18

5шт.
