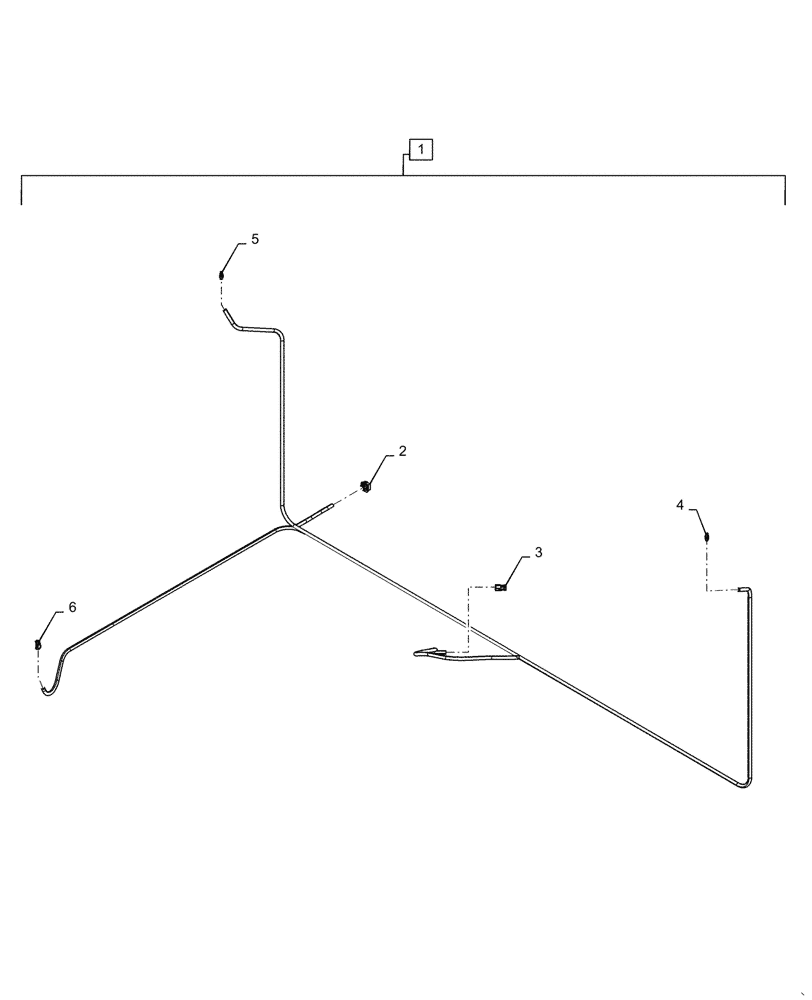

Запчасти Case IH 1255 (55.100.AA[07]) - HARNESS, WIRE, BULK FILL LIGHTS (55) - ELECTRICAL SYSTEMS

1

84552143

WIRE HARNESS

Bulk Fill Lights, Incl 2 - 6

1шт.

2

87697770

MULTIPOLE CONNECTOR,Female, 5 Pole

X-703, Relay

1шт.

2

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

X-703, Relay

2шт.

2

87680701

SEAL

X-703, Relay

4шт.

2

87680656

CONTACT

X-703, Relay

2шт.

3

87692858

ELEC CONNECTOR,Male

X-701, Bulk Fill Lights

1шт.

3

87692882

ELEC. TERMINAL PIN

X-701, Bulk Fill Lights

2шт.

3

87680701

SEAL

X-701, Bulk Fill Lights

3шт.

3

87692880

CABLE TERMINAL

X-701, Bulk Fill Lights

1шт.

4

87690452

ELEC CONNECTOR

X-705, Right Bulk Fill Light

1шт.

4

84247557

ELEC. TERMINAL PIN

X-705, Right Bulk Fill Light

2шт.

4

87680701

SEAL

X-705, Right Bulk Fill Light

2шт.

5

87690452

ELEC CONNECTOR

X-704, Left Bulk Fill Light

1шт.

5

87680656

CONTACT

X-704, Left Bulk Fill Light

2шт.

5

87680701

SEAL

X-704, Left Bulk Fill Light

2шт.

6

87692855

CONTACT HOUSING,Male, 2 Cavities

X-702, Light Switch

1шт.

6

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

X-702, Light Switch

2шт.

6

87680701

SEAL

X-702, Light Switch

2шт.
