Запчасти Case IH 1255 (55.100.AA[02]) - HARNESS, WIRE, ELEC CLUTCH DUAL ROW CT (55) - ELECTRICAL SYSTEMS

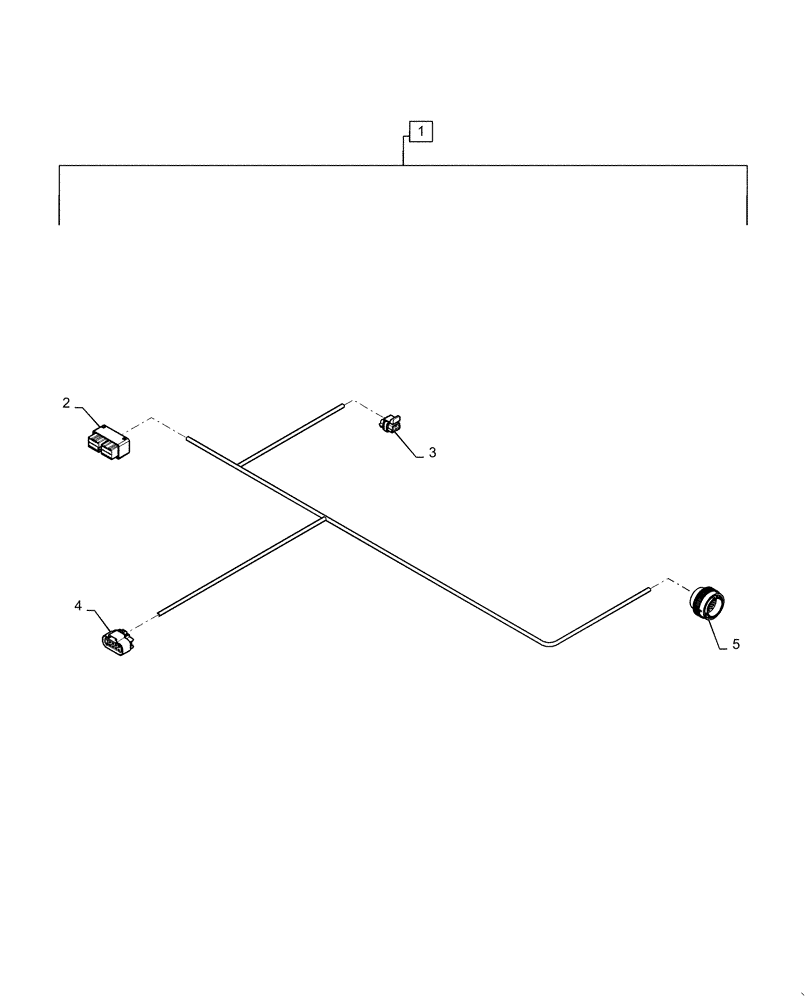

Схема запчастей Case IH 1255 - (55.100.AA[02]) - HARNESS, WIRE, ELEC CLUTCH DUAL ROW CT (55) - ELECTRICAL SYSTEMS
1
5
3
4
2

Артикул

Название

Примечание

Количество

1

84566753

WIRE HARNESS

Electrical Clutch, Dual Row CT, Incl 2 - 5

1шт.

2

87268798

MULTIPOLE CONNECTOR,Female, 30 Pole

X-676, Clutch ECU 1

1шт.

2

84142712

PLUG

X-676, Clutch ECU 1

2шт.

2

87270687

ELEC. TERMINAL PIN,Female, 0.75 - 1.5 mm2

X-676, Clutch ECU 1

25шт.

2

87270686

TERMINAL

X-676, Clutch ECU 1

2шт.

3

87694714

ELEC CONNECTOR,Female, 6 Cavities

X-678, Can Term

1шт.

3

87694719

LOCKING TAB,Wedge Lock

X-678, Can Term

1шт.

3

87689636

PLUG,Red, Taxi Seal Connector Cavity

X-678, Can Term

2шт.

3

87688852

ELEC. TERMINAL PIN

X-678, Can Term

4шт.

3

87689629

SEAL

X-678, Can Term

4шт.

4

87698252

ELEC CONNECTOR,Female, 10 Cavities

X-675, Clutch Can Term

1шт.

4

87694140

ELEC CONNECTOR

X-675, Clutch Can Term

1шт.

4

87697672

TERMINAL

X-675, Clutch Can Term

4шт.

4

84148225

SEAL

X-675, Clutch Can Term

4шт.

4

84193153

TERMINAL

X-675, Clutch Can Term

6шт.

4

84143101

SEAL

X-675, Clutch Can Term

4шт.

4

87698532

SEAL,2.5 - 3.2mm

X-675, Clutch Can Term

2шт.

5

87713304

ELEC CONNECTOR

X-677, Row Clutches

1шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X-677, Row Clutches

3шт.

5

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-677, Row Clutches

36шт.

5

84068583

PLUG,12 - 16 Ga, White

X-677, Row Clutches

2шт.

5

84807680

PLUG

X-677, Row Clutches

6шт.

Выбрано товаров: 22
