(39.110.AB[01]) - INNER HITCH 16 ROW PAINTED RED DRAW BAR

Запчасти Case IH 1255 (39.110.AB[01]) - INNER HITCH 16 ROW PAINTED RED DRAW BAR (39) - FRAMES AND BALLASTING

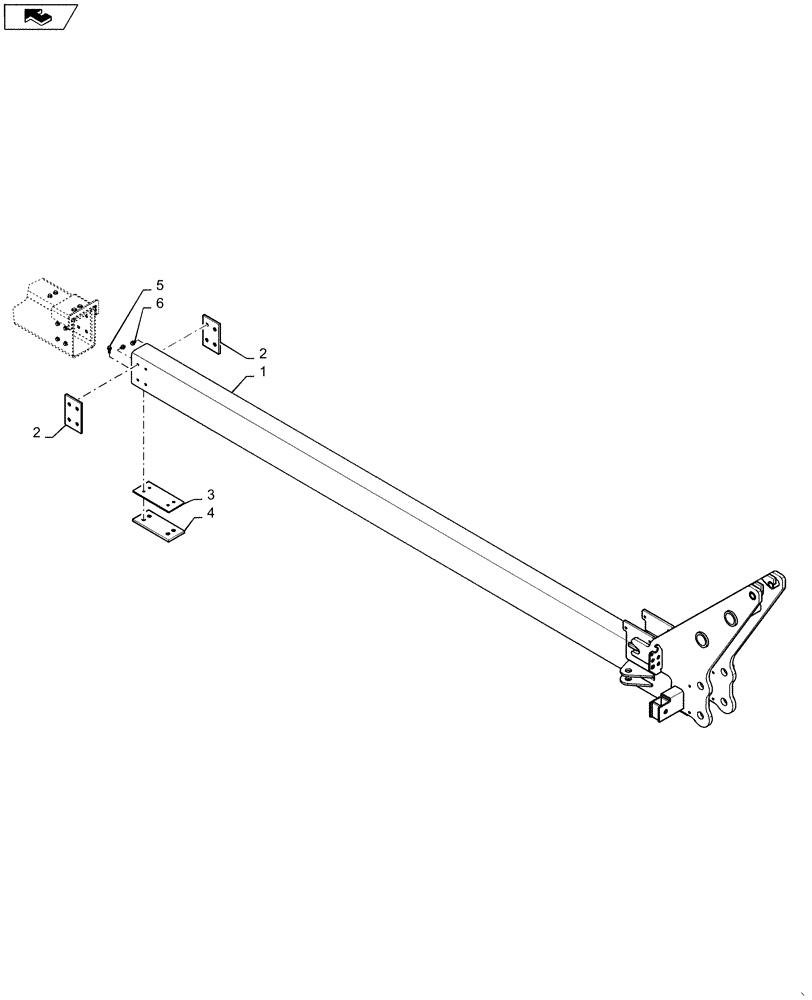

Схема запчастей Case IH 1255 - (39.110.AB[01]) - INNER HITCH 16 ROW PAINTED RED DRAW BAR (39) - FRAMES AND BALLASTING
6
2
3
2
5
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87484785

HITCH

Drawbar, 16 Row, Painted, Incl Decals

1шт.

2

87504522

SKID/SHOE

5.5 x 9.0"

2шт.

3

87540703

PLATE

Anti Skid Support

1шт.

4

87504521

SKID/SHOE

5.5 x 12.5"

1шт.

5

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

6

86544354

FLANGE BOLT

1/2 x 0.75

8шт.
