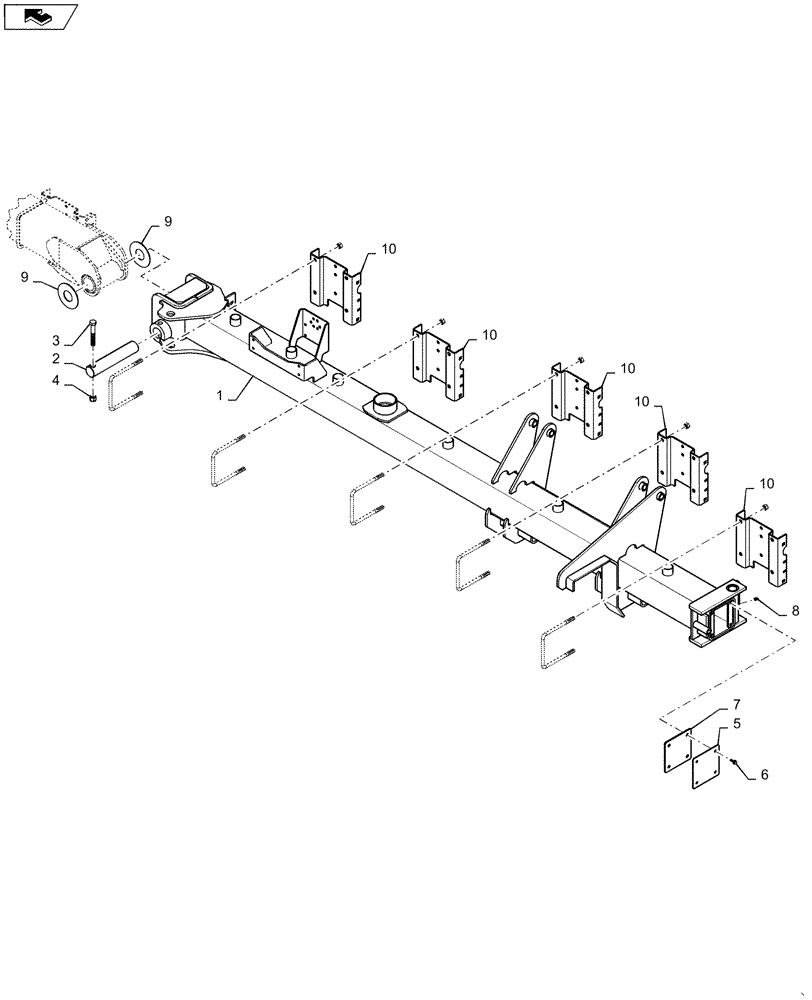

Запчасти Case IH 1255 (39.100.AN[04]) - OUTER WING LEFT FOR 16 ROW (39) - FRAMES AND BALLASTING

1

84293631

BEAM

Left Outer Wing, 16 Row, Painted Red

1шт.

2

84295613

PIN

Wing Flex Pivot

1шт.

3

9602203

BOLT,Hex, 3/4" x 5", Gr 8

1шт.

4

9626598

NUT,3/4"-10, GB

1шт.

5

87643100

PLATE

Vacuum 3/8 x 1.00 Gr 5

1шт.

6

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

7

87471358

GASKET

Toolbar Cleanout

1шт.

8

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

9

84295589

THRUST WASHER

16 Row

2шт.

10

141728C5

BRACKET

Channel, Painted Red

5шт.
