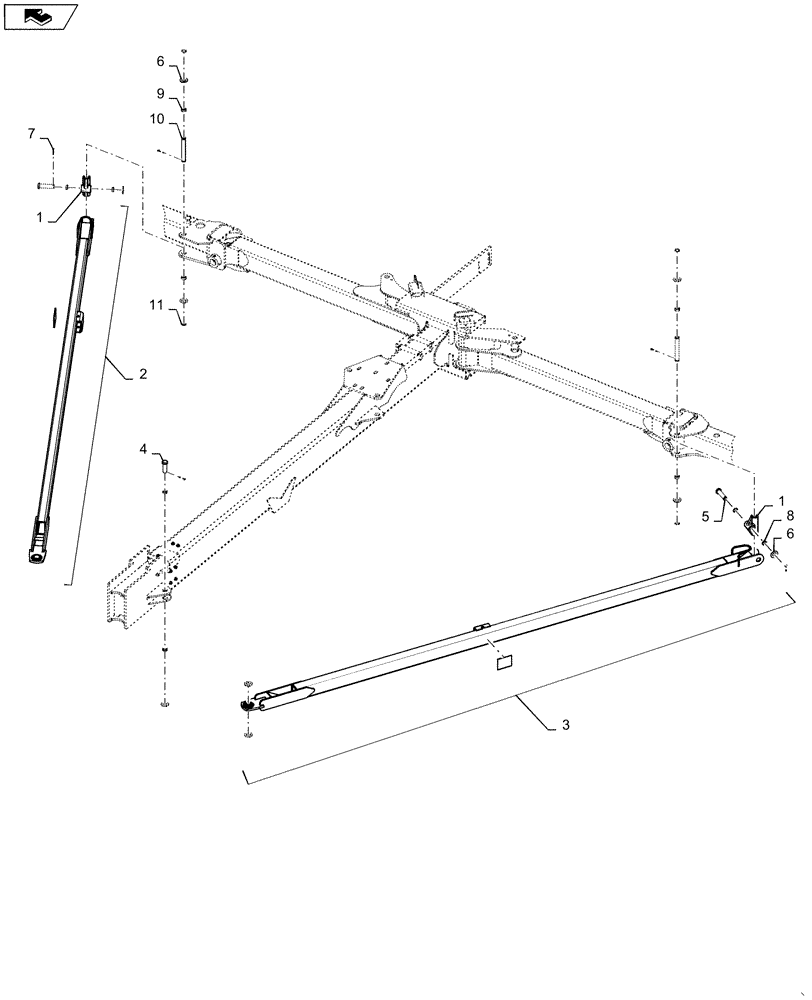

Запчасти Case IH 1255 (39.100.AN[01]) - DRAFT TUBES 16 ROW (39) - FRAMES AND BALLASTING

1

87614089

KNUCKLE JOINT

Draft Tube

2шт.

2

87717060

TUBE,3100mm L

Draft, Right Painted Red, Incl Decals

1шт.

3

87717059

TUBE,950mm L

Draft, Left Painted Red, Incl Decals

1шт.

4

87575682

HEADED PIN

1.25 x 3.800 Gr 5

2шт.

5

87575681

HEADED PIN

1.25 x 4.800 Gr 5

2шт.

6

87023158

WASHER,1.31" ID x 2.5" OD x 0.15" Thk

12шт.

7

88182

COTTER PIN,1/4" OD x 2" L

4шт.

8

87504524

BUSHING

Tension

10шт.

9

1268053C1

BUSHING,38.1mm ID x 44.45mm OD x 19.05mm L

Tension

2шт.

10

87717819

PIN

31.75 x 220.0

2шт.

11

86625148

SNAP RING,#125, Ext

4шт.
