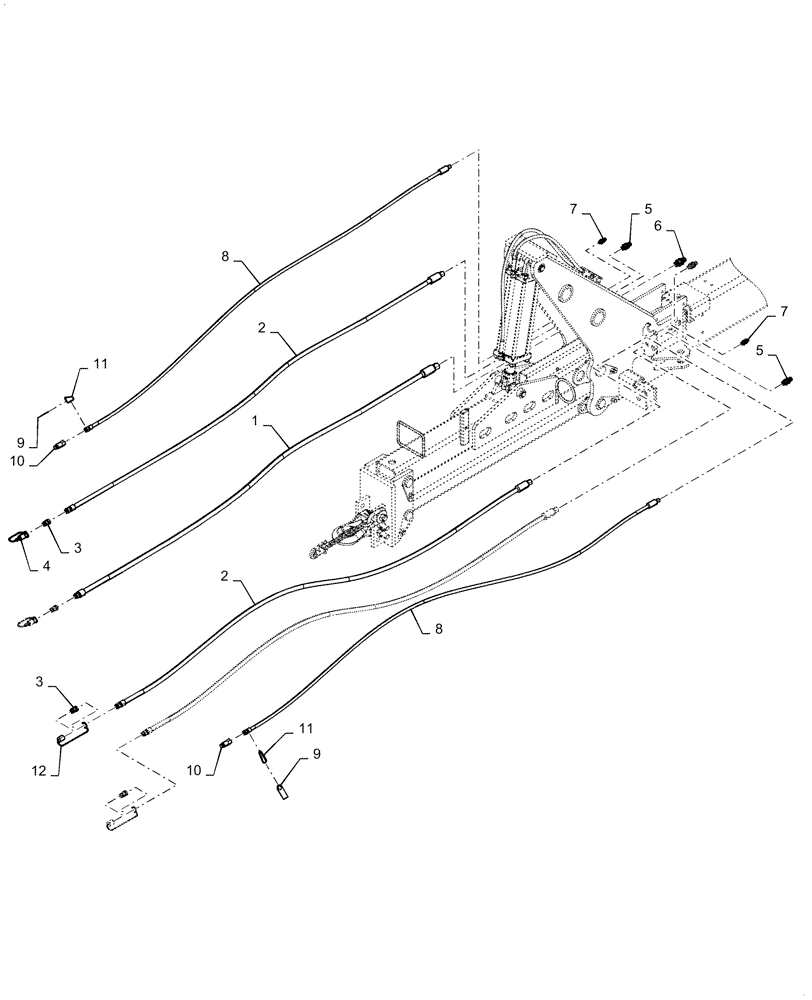

Запчасти Case IH 1255 (35.780.AD[05]) - TRACTOR HOSES FOR 16 ROW DRAW BAR HITCH (35) - HYDRAULIC SYSTEMS

1

47456340

HOSE

19mm ID x 3100mm

2шт.

2

47446544

HOSE

16mm ID x 3200mm

4шт.

3

1272399C2

QUICK MALE COUPLING

6шт.

4

333719A1

CAP

Quick Coupler Yellow

2шт.

5

9610690

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

4шт.

6

86508629

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2шт.

7

86513087

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

8

47456334

HOSE

2шт.

9

47432848

DECAL

2шт.

10

385358A1

QUICK MALE COUPLING,3/8"

1шт.

11

6033

CABLE TIE,6"

1шт.

12

333721A1

CAP

Quick Coupler Red

2шт.

13

333722A1

CAP

Quick Coupler Green

2шт.
