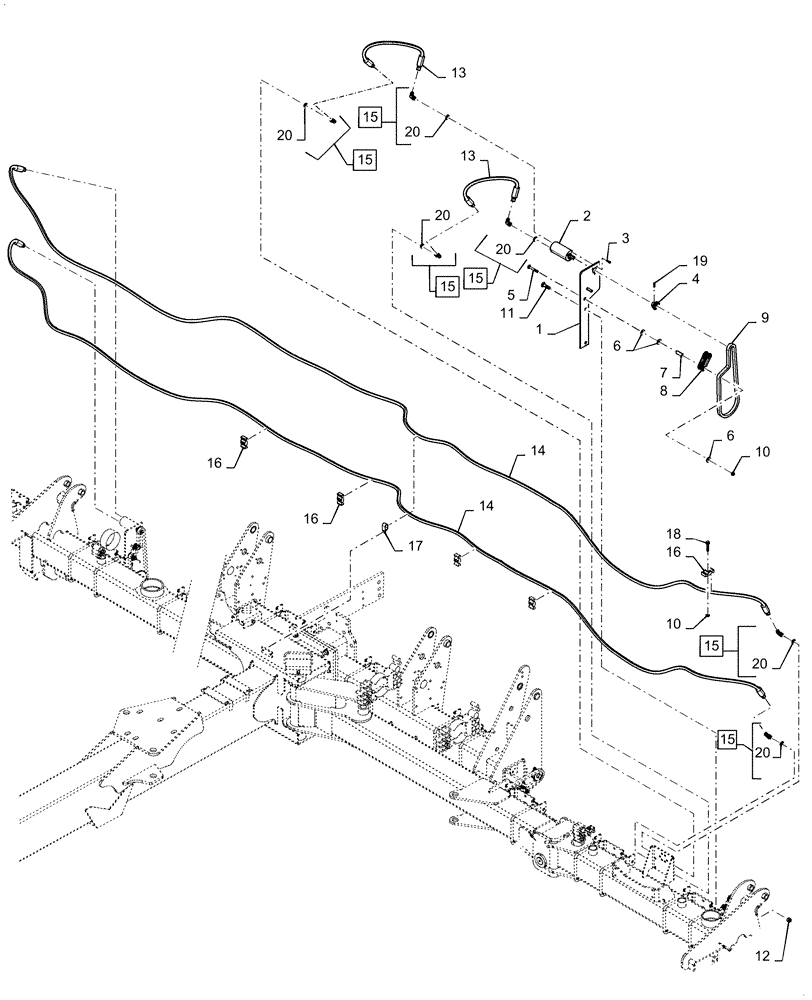

Запчасти Case IH 1255 (35.744.AC[02]) - HYDRAULIC SEED METER DRIVE FOR 12 AND 16 ROW (35) - HYDRAULIC SYSTEMS

1

436716A2

BRACKET

Seed Drive Motor Red

2шт.

2

293288A1

MOTOR

Meter Drive

2шт.

2

293288A1C

CORE-MOTOR HYDRAULIC

Meter Drive

2шт.

2

293288A1R

REMAN-HYD MOTOR

Meter Drive

2шт.

3

86632598

HEX SOC SCREW,1/4" - 28 x 3/4"

6шт.

4

84551195

SPROCKET

# 40 10 Tooth

2шт.

5

280628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

4шт.

6

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

12шт.

7

381930A1

BUSHING,10.34mm ID x 15.88mm OD x 36.5mm L

4шт.

8

1277726C1

ROLLER,48mm OD x 34mm L

Idler

4шт.

9

84387534

CHAIN

Seed Drive

2шт.

10

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

5шт.

11

280185

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

4шт.

12

88871

NUT,1/2"-13, GC

4шт.

13

1336840C1

HYDRAULIC HOSE

from Fan Motor Port B to Valve Port S1 (.375 x 25" Long)

2шт.

from Fan Motor Port A to Valve Port S2 (.375 x 25" Long)

1шт.

14

1284262C1

HYDRAULIC HOSE,9.53mm ID x 6985mm L

from Fan Motor Port B to Valve Port S3

2шт.

from Fan Motor Port A to Valve Port S4

1шт.

15

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 20

8шт.

16

87482623

CLAMP

Large

5шт.

17

22510700

HOSE CLAMP,15.86mm

3/8"

1шт.

18

86533830

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

19

86632577

SET SCREW,Hex Skt, 1/4" - 20 x 1/4"

4шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
