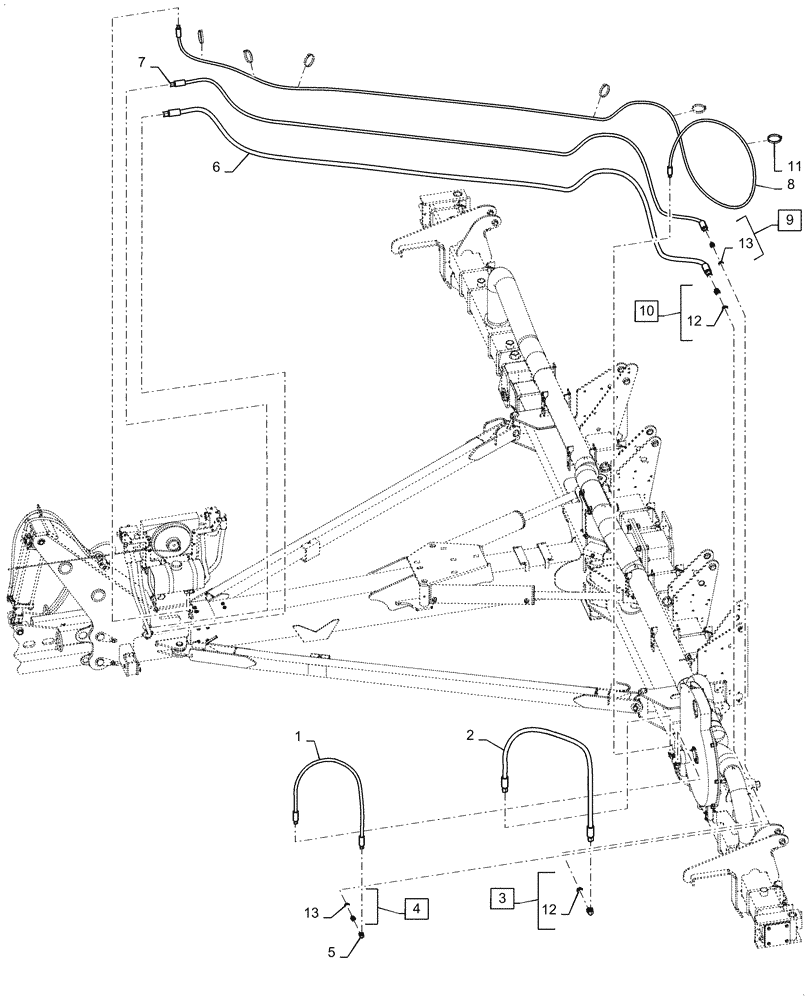

Запчасти Case IH 1255 (35.300.AB[03]) - HYDRAULIC VACUUM HOSES FOR 16 ROW DRAWBAR HITCH EARLY RISER (35) - HYDRAULIC SYSTEMS

1

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

from Port M1 of Multi Valve to Fan Motor Port P

1шт.

2

87463224

HYDRAULIC HOSE

from Port M2 of Multi Valve to Fan Motor Port R (.75 x 1400mm Long)

1шт.

3

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 12

1шт.

4

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl 13

1шт.

5

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

6

87655958

HYDRAULIC HOSE

from Port T of Multi Valve to Hitch Mounting Bracket (19 x 6050mm Long)

1шт.

7

47452684

HOSE

from Port P of Multi Valve to Hitch Mounting Bracket (16 x 6050mm Long)

1шт.

8

435691A1

HYDRAULIC HOSE

from fan Motor Drain Port to Hydraulic Tank (3/8 X 300" Long)

1шт.

9

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

Incl 13

1шт.

10

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 12

1шт.

11

87502039

CABLE TIE

Medium

8шт.

12

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
