Запчасти Case IH 1255 (35.300.AB[02]) - 22 GPM PTO FOR 12 AND 16 ROW FRONT FOLDING TRAILER (35) - HYDRAULIC SYSTEMS

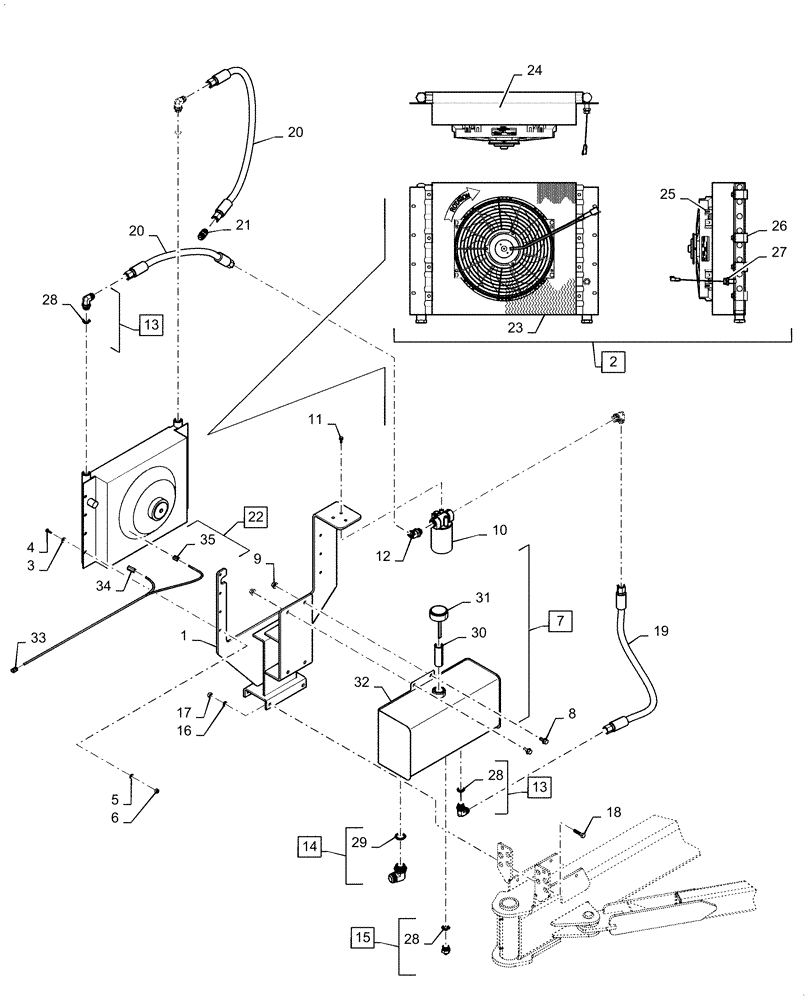

Схема запчастей Case IH 1255 - (35.300.AB[02]) - 22 GPM PTO FOR 12 AND 16 ROW FRONT FOLDING TRAILER (35) - HYDRAULIC SYSTEMS
25
14
9
1
24
7
12
15
16
5
28
27
29
32
18
11
6
30
33
31
26
3
35
10
28
21
34
2
13
28
19
17
8
20
22
4
13
20
23

Артикул

Название

Примечание

Количество

1

84538173

MOUNT

Cooler Painted Red

1шт.

2

87618983

COOLER ASSY.

Oil, Incl 23 - 27

1шт.

3

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

8шт.

4

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

8шт.

5

80681

LOCK WASHER,5/16"

8шт.

6

9635082

NUT,5/16" - 18, Gr 5

8шт.

7

84526682

TANK

Assy, 6.5 Gallons, Incl 30 - 32

1шт.

8

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

9

86521610

FLANGE NUT,Flg, 1/2"-13

4шт.

10

87404509

FILTER ASSY

Fan Drive

1шт.

11

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

3шт.

12

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

13

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 28

4шт.

14

84530

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, O-Ring

Incl 29

1шт.

15

86624009

HYD CONNECTOR,9/16"-18, 37 Degree x 1 1/16"-12, O-Ring

Incl 28

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

17

86512371

SERRATED NUT,Flg, USR, 1/2"-13

4шт.

18

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

4шт.

19

87590330

HYDRAULIC HOSE

from Oil Cooler to Fan Drive Filter (19 x 1000mm Long)

1шт.

20

87578858

HYDRAULIC HOSE

from Fan Drive Filter to Tank (19 x 600mm Long)

2шт.

21

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

22

355955A1

HARNESS

Cyclo Cooling, Incl 33 - 35

1шт.

23

87450680

OIL COOLER

Pusher

1шт.

24

87450682

SHROUD

Top

1шт.

25

87621874

FAN

12 Volt Push

1шт.

26

396980A1

PLUG

Rubber Block

8шт.

27

87502292

SWITCH

Temp 160°

1шт.

28

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

29

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

30

87435908

SCREEN

Reservoir

1шт.

31

129575A1

CAP

Reservoir

1шт.

32

84526685

TANK

Reservoir

1шт.

33

225315C1

ELEC CONNECTOR,Male, 2 Pin

Cyclo Cooling

1шт.

34

225295C1

ELEC CONNECTOR,Female, 3 Pin

Cyclo Cooling

1шт.

35

225316C1

ELEC CONNECTOR,Female, 2 Pin

Cyclo Cooling

1шт.

Выбрано товаров: 35
