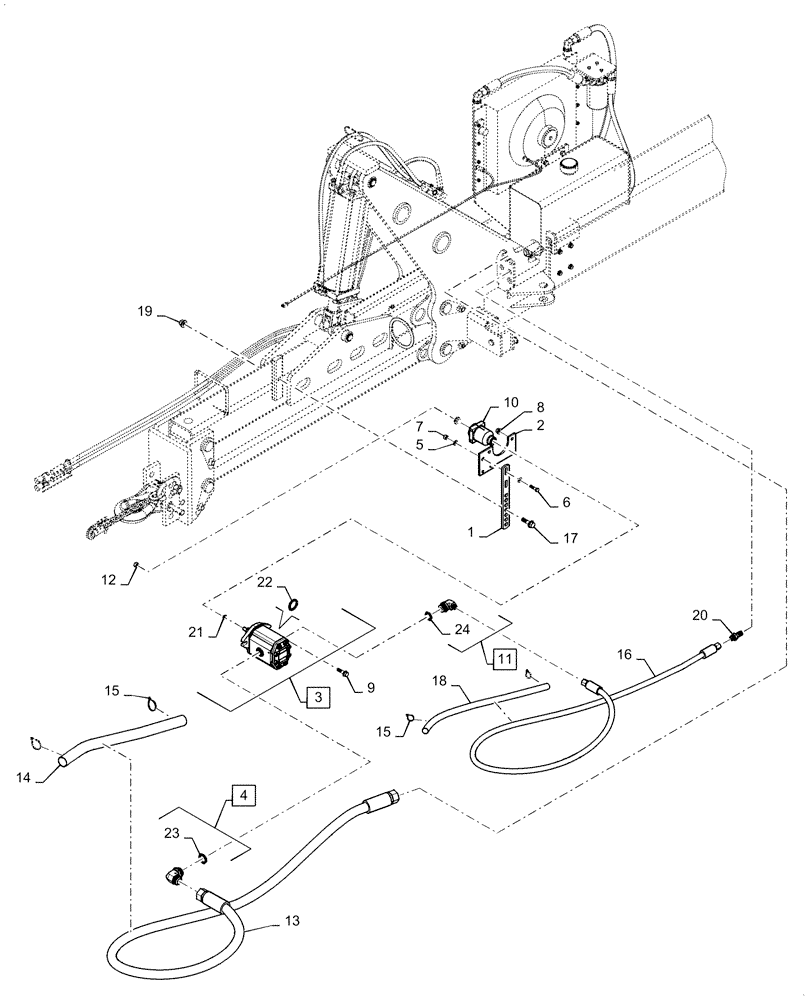

Запчасти Case IH 1255 (35.105.AA[04]) - PTO PUMP 22 GPM FOR DRAW BAR HITCH (35) - HYDRAULIC SYSTEMS

1

437631A1

BRACKET

Adjusting

1шт.

2

437630A1

PLATE

Pump Mounting

1шт.

3

87619629

PUMP

22 GPM PTO, Incl 12, 21, 22

1шт.

3

87619629R

REMAN-HYD PUMP

1шт.

3

87619629C

CORE-HYDRAULIC PUMP

Return Number

1шт.

4

84530

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, O-Ring

Incl 23

1шт.

5

87363

WASHER,0.47" ID x 0.92" OD x 0.07" Thk

4шт.

6

86050212

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

2шт.

7

86637736

NUT,7/16"-14, GB

2шт.

8

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

9

86521616

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

2шт.

10

1958268C1

COUPLING

1 3/4" Clamp Type

1шт.

11

87024324

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 5/16"-12, O-Ring

Incl 24

1шт.

12

280963

NUT,Nut, 1/2-20 GR 5 ZND

1шт.

13

87488535

HYDRAULIC HOSE,31.5mm ID x 3500mm L, SAE 100R4

from PTO Drive Pump to Reservoir

1шт.

14

87458128

PROTECTIVE SLEEVE,64.5mm ID x 1117.6mm L

Sleeve Protective

1шт.

15

87502038

CABLE TIE

Small

4шт.

16

47452376

HOSE

from PTO Drive Pump to Hitch Mounting Bracket (31.5 x 3500mm Long)

1шт.

17

86521621

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

18

87458127

SLEEVE

Sleeve Protective

1шт.

19

86521611

FLANGE NUT,Flg, 5/8"-11

1шт.

20

9610690

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

21

47471

WOODRUFF KEY,#15, 1/4" x 1", HT

Hydraulic PTO Pump

1шт.

22

84391735

KIT

Hydraulic PTO Pump

1шт.

23

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

24

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
