(79.103.AA[04]) - VACUUM DELIVERY HOSES RIGHT FOR 16 ROW

Запчасти Case IH 1255 (79.103.AA[04]) - VACUUM DELIVERY HOSES RIGHT FOR 16 ROW (79) - PLANTING

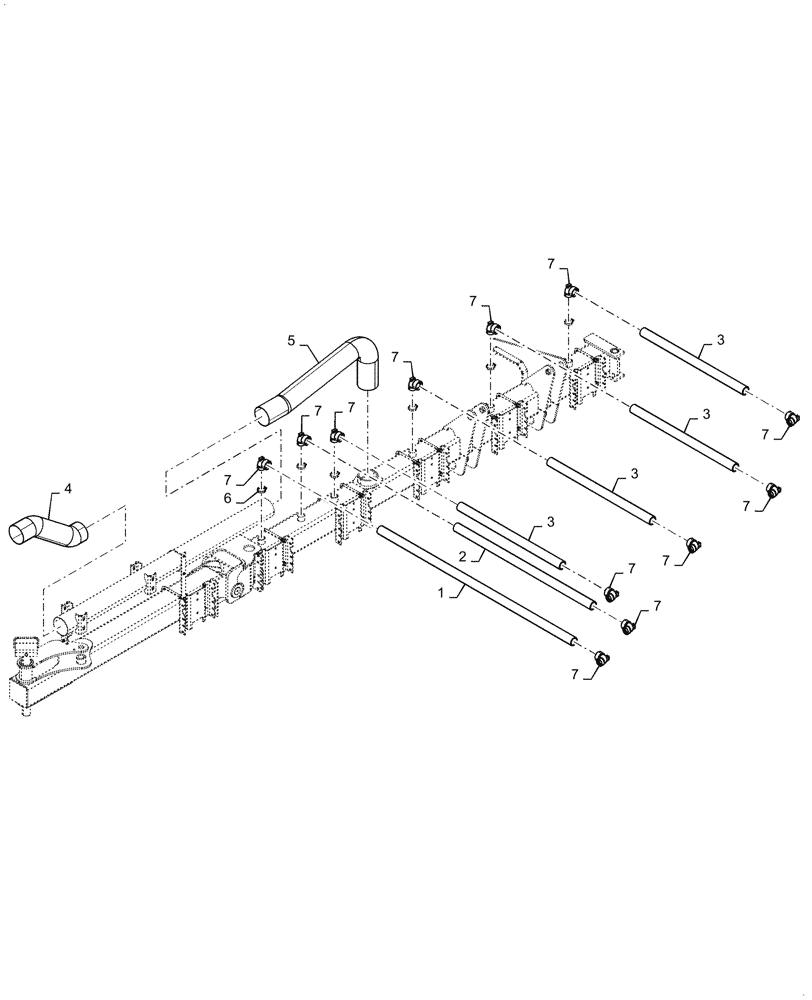

Схема запчастей Case IH 1255 - (79.103.AA[04]) - VACUUM DELIVERY HOSES RIGHT FOR 16 ROW (79) - PLANTING
7
7
3
7
7
7
1
7
2
4
7
7
7
7
7
3
5
6
3
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87501726

HOSE

Cut to Length 1890 mm

1шт.

2

87501726

HOSE

Cut to Length 1334 mm

1шт.

3

87501726

HOSE

Cut to Length 1000 mm

4шт.

4

86991569

INTAKE AIR HOSE

Cut to Length 603 mm

1шт.

5

86991569

INTAKE AIR HOSE

Cut to Length 1447 mm

1шт.

6

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

6шт.

7

84416530

90 ELBOW

50 mm

12шт.

Выбрано товаров: 7
