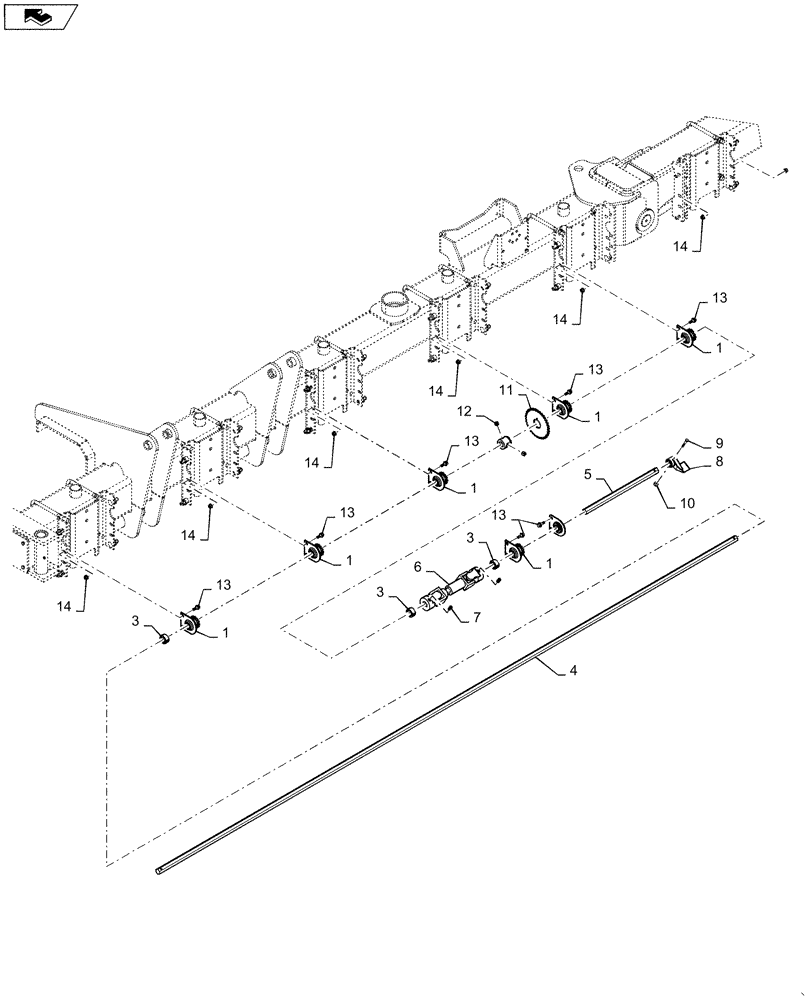

Запчасти Case IH 1255 (61.901.AI[03]) - SEED METER, CHAIN DRIVEN SHAFT, OUTER LEFT FOR 16 ROW (61) - METERING SYSTEM

1

413712A1

BEARING ASSY,1.90625" OD x 1.875"

W/ Bearing 12 Tooth

6шт.

2

102724A2

BALL BEARING,22.6mm ID

Hanger

2шт.

3

22224

COLLAR

Stop Lock

3шт.

4

402951A1

DRIVE SHAFT

22 mm Hex x 3550 mm

1шт.

5

87589426

SHAFT

Hex .845 x 17.4"

1шт.

6

87444140

DRIVE SHAFT

Telescoping

1шт.

7

87035712

SET SCREW,Hex Skt, 3/8" - 16 x 5/8"

2шт.

8

87539852

COUPLING

Cross Over Drive

1шт.

9

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

10

20356

NUT,1/4"-20, GB

1шт.

11

353037A1

SPROCKET

34 Tooth

1шт.

Used for Hydraulic Driven Units

1шт.

12

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

2шт.

13

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

16шт.

14

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

16шт.

15

84523394

KEYWAY

Set Screw 1/4 - 28 x 3/8 Cup

6шт.
