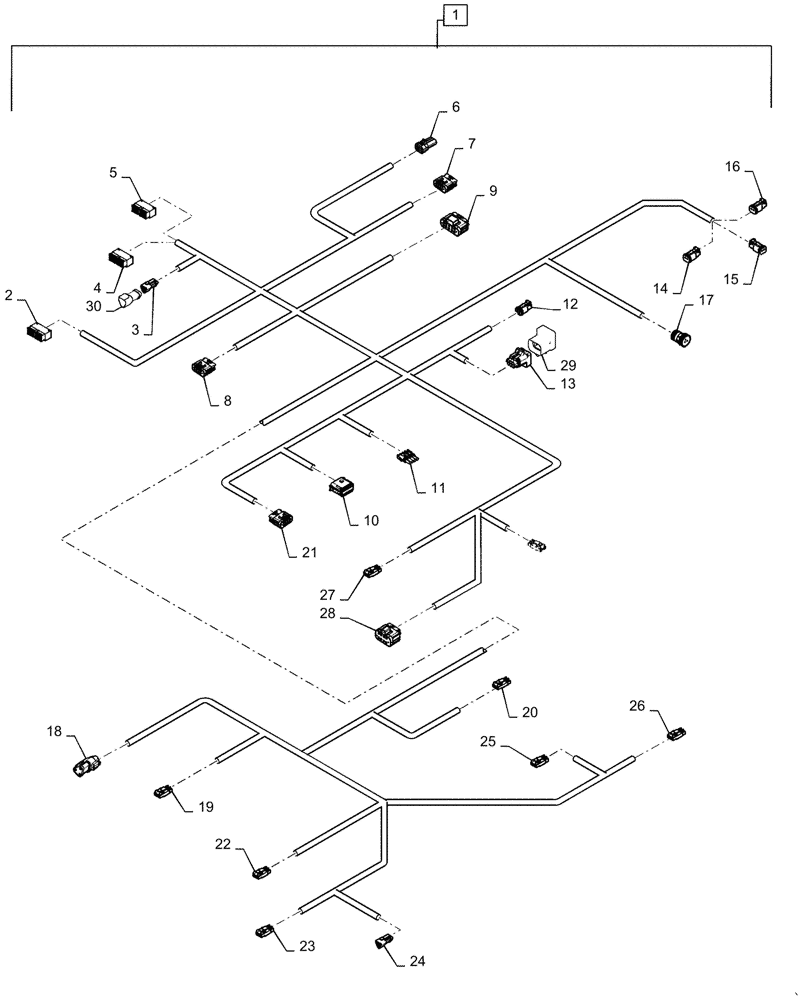

Запчасти Case IH 1255 (55.100.AA[11]) - HARNESS TOOLBAR 12/16 ROW 2 CAN (55) - ELECTRICAL SYSTEMS

1

84540063

WIRE HARNESS

Toolbar, 12/16 Row 2 Can, Incl 2 - 28

1шт.

2

87268798

MULTIPOLE CONNECTOR,Female, 30 Pole

X-255, Clutch ECU

1шт.

2

84142712

PLUG

X-255, Clutch ECU

4шт.

2

87270687

ELEC. TERMINAL PIN,Female, 0.75 - 1.5 mm2

X-255, Clutch ECU

26шт.

3

87695549

ELEC CONNECTOR,Female, 3 Cavities

X-248, Can 2 Termination

1шт.

3

84058194

PLUG

X-248, Can 2 Termination

1шт.

3

84068583

PLUG,12 - 16 Ga, White

X-248, Can 2 Termination

1шт.

3

84058092

CONTACT HOUSING,120 Ohm Resistor

X-248, Can 2 Termination

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-248, Can 2 Termination

2шт.

4

87268797

MULTIPOLE CONNECTOR,Female, 30 Pole

X-202, ECU 1A

1шт.

4

84142712

PLUG

X-202, ECU 1A

15шт.

4

87270687

ELEC. TERMINAL PIN,Female, 0.75 - 1.5 mm2

X-202, ECU 1A

7шт.

4

87270686

TERMINAL

X-202, ECU 1A

8шт.

5

87268798

MULTIPOLE CONNECTOR,Female, 30 Pole

X-203, ECU 1B

1шт.

5

84142712

PLUG

X-203, ECU 1B

5шт.

5

87270687

ELEC. TERMINAL PIN,Female, 0.75 - 1.5 mm2

X-203, ECU 1B

12шт.

5

87270686

TERMINAL

X-203, ECU 1B

13шт.

6

87694718

ELEC CONNECTOR

X-250, Implement Can

1шт.

6

87694719

LOCKING TAB,Wedge Lock

X-250, Implement Can

1шт.

6

87689636

PLUG,Red, Taxi Seal Connector Cavity

X-250, Implement Can

2шт.

6

87690460

TERMINAL

X-250, Implement Can

4шт.

6

87689629

SEAL

X-250, Implement Can

4шт.

7

84137495

TERMINAL

X-201, ECU 1

1шт.

7

87699200

WIRE CONNECTOR

X-201, ECU 1

1шт.

7

87745379

PLUG

X-201, ECU 1

2шт.

7

87697671

TERMINAL

X-201, ECU 1

5шт.

7

84148225

SEAL

X-201, ECU 1

5шт.

8

84137509

ELEC CONNECTOR

X-204, Bulk Fill

1шт.

8

87699200

WIRE CONNECTOR

X-204, Bulk Fill

1шт.

8

87745379

PLUG

X-204, Bulk Fill

1шт.

8

84193153

TERMINAL

X-204, Bulk Fill

7шт.

8

84143101

SEAL

X-204, Bulk Fill

7шт.

9

84137524

ELEC CONNECTOR

X-205, Liquid Fertilizer

1шт.

9

87745379

PLUG

X-205, Liquid Fertilizer

1шт.

9

87697672

TERMINAL

X-205, Liquid Fertilizer

1шт.

9

87698532

SEAL,2.5 - 3.2mm

X-205, Liquid Fertilizer

1шт.

9

84193153

TERMINAL

X-205, Liquid Fertilizer

7шт.

9

84143101

SEAL

X-205, Liquid Fertilizer

7шт.

10

87695592

CONTACT HOUSING,Female, 12 Pole

X-249, Left Row Clutches

1шт.

10

87695651

LOCKING TAB,Wedge Lock

X-249, Left Row Clutches

1шт.

10

84068583

PLUG,12 - 16 Ga, White

X-249, Left Row Clutches

3шт.

10

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

X-249, Left Row Clutches

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-249, Left Row Clutches

8шт.

11

87692817

ELEC CONNECTOR

X-245, Seed Sensor Bus

1шт.

11

87692856

CABLE TERMINAL

X-245, Seed Sensor Bus

4шт.

11

87680701

SEAL

X-245, Seed Sensor Bus

4шт.

12

87694109

ELEC CONNECTOR

X-257, Scale

1шт.

12

84068583

PLUG,12 - 16 Ga, White

X-257, Scale

2шт.

12

87694149

ELEC CONNECTOR

X-257, Scale

1шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-257, Scale

4шт.

13

87694714

ELEC CONNECTOR,Female, 6 Cavities

X-251, Implement Can

1шт.

13

87694719

LOCKING TAB,Wedge Lock

X-251, Implement Can

1шт.

13

87689636

PLUG,Red, Taxi Seal Connector Cavity

X-251, Implement Can

2шт.

13

87688852

ELEC. TERMINAL PIN

X-251, Implement Can

4шт.

13

87689629

SEAL

X-251, Implement Can

4шт.

14

87695582

ELEC CONNECTOR,Female, 2 Pole

X-207, Seed 1 Valve

1шт.

14

87695649

ELEC CONNECTOR,Locking, Green

X-207, Seed 1 Valve

1шт.

14

87695649

ELEC CONNECTOR,Locking, Green

X-207, Seed 1 Valve

1шт.

14

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-207, Seed 1 Valve

2шт.

15

87695582

ELEC CONNECTOR,Female, 2 Pole

X-208, Seed 2 Valve

1шт.

15

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-208, Seed 2 Valve

2шт.

15

87695649

ELEC CONNECTOR,Locking, Green

X-208, Seed 2 Valve

1шт.

16

87695582

ELEC CONNECTOR,Female, 2 Pole

X-230, ASM Fan A

1шт.

16

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-230, ASM Fan A

2шт.

16

87695649

ELEC CONNECTOR,Locking, Green

X-230, ASM Fan A

1шт.

17

87706509

SOCKET/RECEPTACLE

X-209, Calibration Switch

1шт.

17

84068583

PLUG,12 - 16 Ga, White

X-209, Calibration Switch

1шт.

17

87695652

PLUG,12 - 16 Ga, White

X-209, Calibration Switch

1шт.

17

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-209, Calibration Switch

2шт.

18

87692837

WIRE CONNECTOR,Female, 3 Pole

X-226, Vacuum Sensor

1шт.

18

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

X-226, Vacuum Sensor

3шт.

19

87696551

CONTACT HOUSING,Female, 3 Pole

X-225, Seed 2 FB

1шт.

19

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-225, Seed 2 FB

3шт.

20

87696551

CONTACT HOUSING,Female, 3 Pole

X-224, Seed 1 FB

1шт.

20

87705586

WEDGE

X-224, Seed 1 FB

1шт.

20

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-224, Seed 1 FB

3шт.

21

87695724

ELEC CONNECTOR,Male, 12 Pole

X-252, Right Row Clutches

1шт.

21

87698541

LOCKING TAB,Wedge Lock, 12-Pin

X-252, Right Row Clutches

1шт.

21

84068583

PLUG,12 - 16 Ga, White

X-252, Right Row Clutches

3шт.

21

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

X-252, Right Row Clutches

1шт.

21

87695623

ELEC. TERMINAL PIN

X-252, Right Row Clutches

8шт.

22

87696551

CONTACT HOUSING,Female, 3 Pole

X-223, LH, Wheel Speed

1шт.

22

87705586

WEDGE

X-223, LH, Wheel Speed

1шт.

22

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-223, LH, Wheel Speed

3шт.

23

87696551

CONTACT HOUSING,Female, 3 Pole

X-222, RH, Wheel Speed

1шт.

23

87705586

WEDGE

X-222, RH, Wheel Speed

1шт.

23

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-222, RH, Wheel Speed

3шт.

24

87695580

ELEC CONNECTOR,Female, 3 Pole

X-221, Toolbar Position

1шт.

24

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-221, Toolbar Position

3шт.

25

87696551

CONTACT HOUSING,Female, 3 Pole

X-218, Low Bin 2

1шт.

25

87705586

WEDGE

X-218, Low Bin 2

1шт.

25

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-218, Low Bin 2

3шт.

26

87696551

CONTACT HOUSING,Female, 3 Pole

X-220, Low Bin 4

1шт.

26

87705586

WEDGE

X-220, Low Bin 4

1шт.

26

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-220, Low Bin 4

3шт.

27

87696551

CONTACT HOUSING,Female, 3 Pole

X-219, Low Bin 3

1шт.

27

87705586

WEDGE

X-219, Low Bin 3

1шт.

27

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-219, Low Bin 3

3шт.

28

84137509

ELEC CONNECTOR

Air Compressor

1шт.

29

87601142

ELEC CONNECTOR,Female, 6 Cavities

Terminator

1шт.

30

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.
