(55.100.AA[04]) - HARNESS, FFT LIQUID FERTILIZER, ISOBUS

Запчасти Case IH 1255 (55.100.AA[04]) - HARNESS, FFT LIQUID FERTILIZER, ISOBUS (55) - ELECTRICAL SYSTEMS

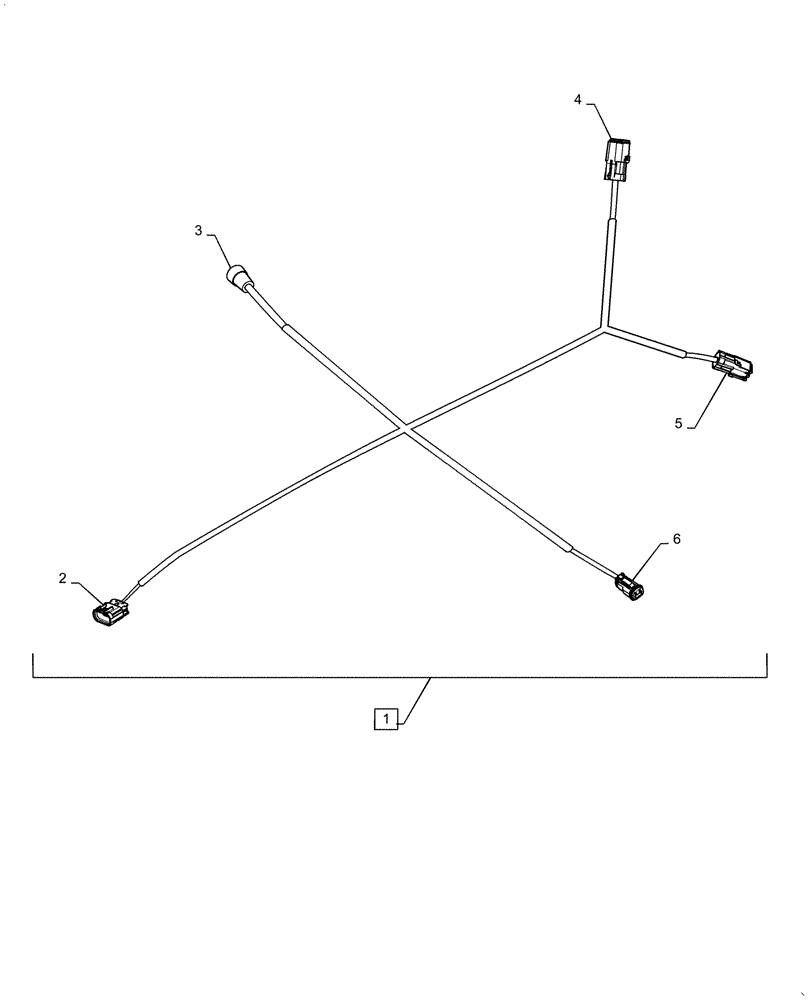

Схема запчастей Case IH 1255 - (55.100.AA[04]) - HARNESS, FFT LIQUID FERTILIZER, ISOBUS (55) - ELECTRICAL SYSTEMS
1
3
6
5
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87575103

HARNESS

Liquid Fertilizer, ISOBUS Incl 2 - 6

1шт.

2

87533279

ELEC CONNECTOR,Male

Liquid Fertilizer

1шт.

3

339889A1

ELEC CONNECTOR,Male, 3 Pin

Flow Meter

1шт.

4

245716C1

ELEC CONNECTOR,Male, 4 Pin

Section 1

1шт.

5

245716C1

ELEC CONNECTOR,Male, 4 Pin

Section 2

1шт.

6

225316C1

ELEC CONNECTOR,Female, 2 Pin

Motor Control

1шт.

Выбрано товаров: 6
