(35.948.AD[05]) - HYDRAULICS LIFT AND FOLD FOR 16 ROW 30" SPACING

Запчасти Case IH 1255 (35.948.AD[05]) - HYDRAULICS LIFT AND FOLD FOR 16 ROW 30" SPACING (35) - HYDRAULIC SYSTEMS

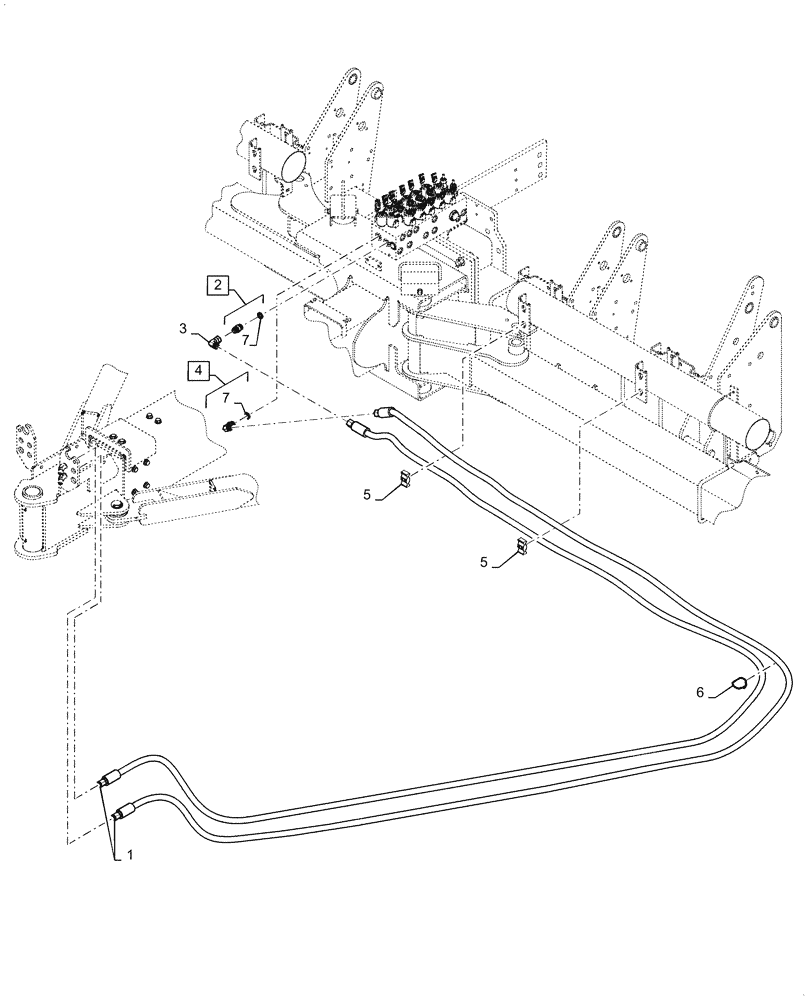

Схема запчастей Case IH 1255 - (35.948.AD[05]) - HYDRAULICS LIFT AND FOLD FOR 16 ROW 30" SPACING (35) - HYDRAULIC SYSTEMS
7
5
7
1
6
3
5
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47446543

HOSE

from Hydraulic Valve Lift Assy to PTO System (625 x 7800mm Long)

2шт.

2

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

Incl 7

1шт.

3

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

4

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl 7

1шт.

5

87482623

CLAMP

Large

2шт.

6

87502038

CABLE TIE

Small

1шт.

7

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Выбрано товаров: 7
