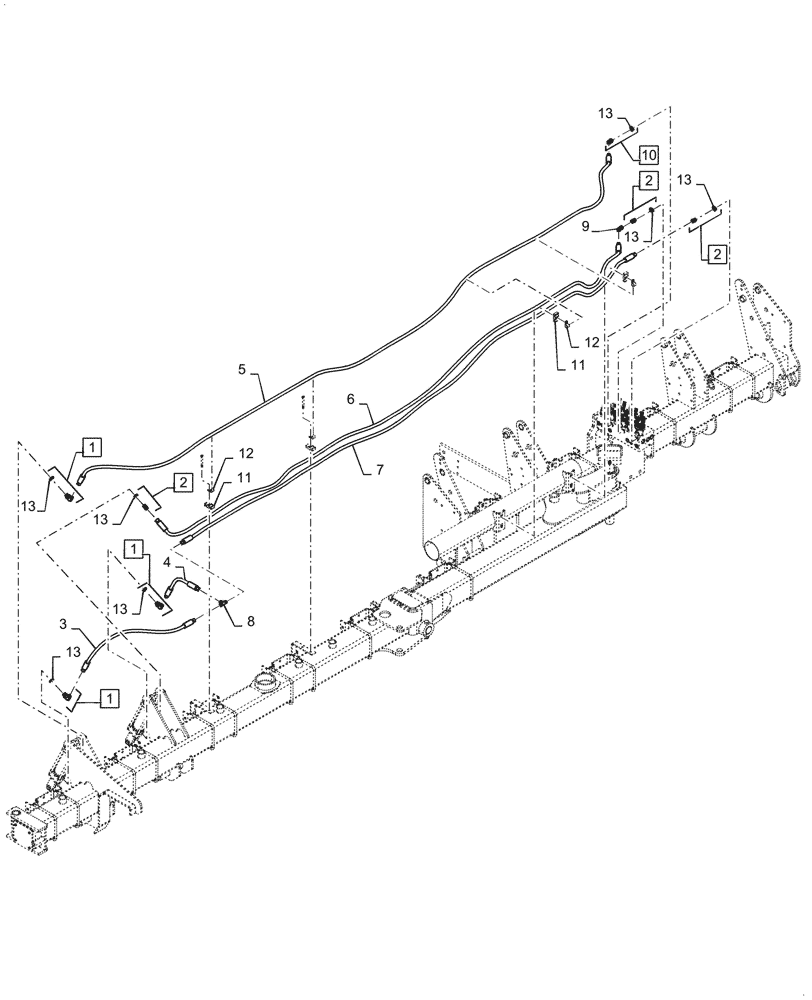

Запчасти Case IH 1255 (35.948.AD[04]) - HYDRAULIC LINES RIGHT WING FOR 16 ROW 30" SPACING (35) - HYDRAULIC SYSTEMS

1

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 13

3шт.

2

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 13

3шт.

3

47409551

HOSE

from Hydraulic Cylinder to Tee (1/2 x 1195mm Long)

1шт.

4

47409554

HOSE

from Hydraulic Cylinder to Tee (1/2 x 485mm Long)

1шт.

5

47409555

HOSE

from Hydraulic Valve Lift Fold Assy to RH Outer Wing Wheel Cylinder Base End (1/2 x 5715mm Long)

1шт.

6

47409553

HOSE

from Hydraulic Valve Lift Fold Assy to RH Outer Wing Wheel Cylinder Rod End (1/2 x 4825mm Long)

1шт.

7

47409387

HOSE

from Hydraulic Valve Lift Fold Assy to RH Wing Wheel Common Rod End (1/2 x 4570mm Long)

1шт.

8

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

9

248992

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

10

216797

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl 13

1шт.

11

87482623

CLAMP

Large

4шт.

12

86637979

CLAMP,20.6mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

13

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
