(35.745.AA[01]) - HYDRAULIC DRIVE, RPM SENSOR

Запчасти Case IH 1255 (35.745.AA[01]) - HYDRAULIC DRIVE, RPM SENSOR (35) - HYDRAULIC SYSTEMS

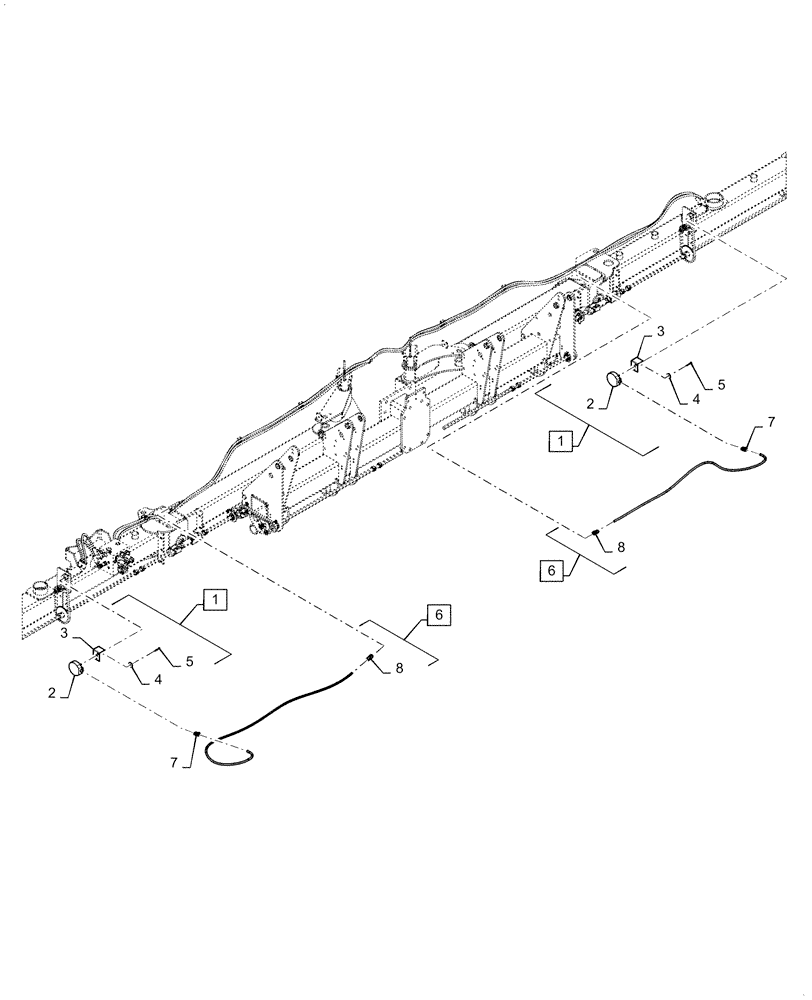

Схема запчастей Case IH 1255 - (35.745.AA[01]) - HYDRAULIC DRIVE, RPM SENSOR (35) - HYDRAULIC SYSTEMS
1
6
7
2
8
4
5
2
3
3
8
6
1
5
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

296164A2

SENSOR

Assy, Application Rate, Incl 2 - 5

2шт.

2

87462997

SENSOR

Application Rate

1шт.

3

294473A1

BRACKET

Anti - Rotational

1шт.

4

492-11008

LOCK WASHER,#8

3шт.

5

260-5448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

3шт.

6

84150072

WIRE HARNESS

Seed FB, Incl 7, 8

1шт.

7

276424A1

ELEC CONNECTOR,Female, 3 Pin

Seed FB

1шт.

8

276426A1

ELEC CONNECTOR,Male, 3 Pin

Seed FB

1шт.
