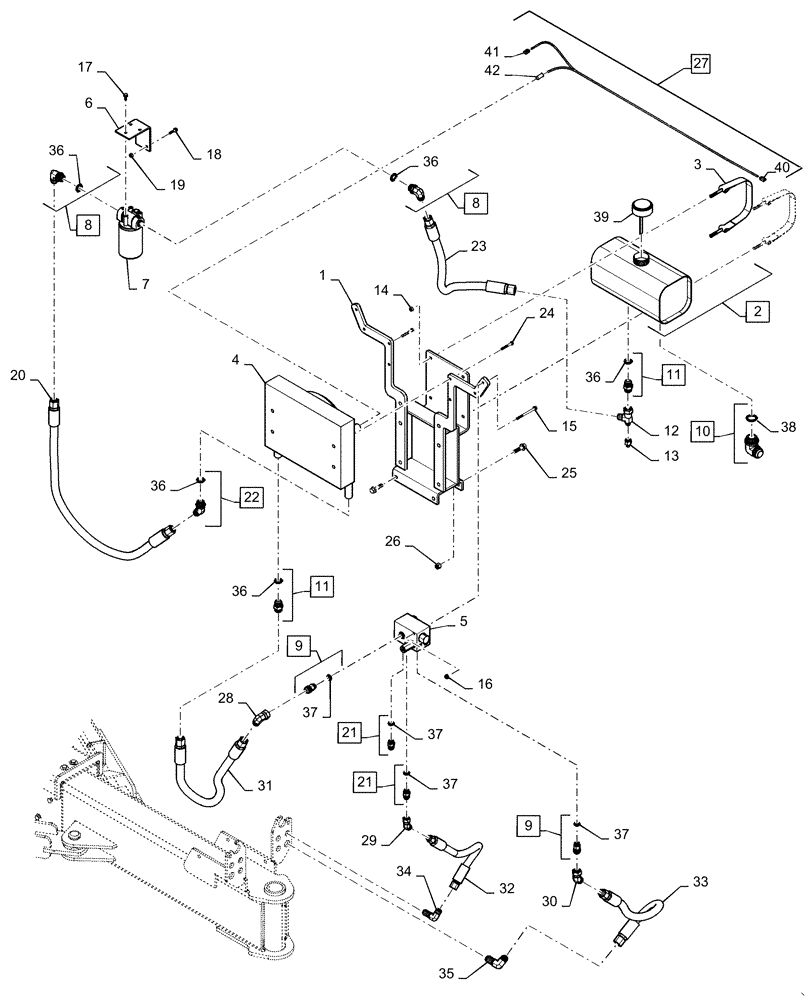

Запчасти Case IH 1255 (35.300.AB[01]) - 14 GPM PTO SYSTEM FRONT FOLDING EARLY RISER (35) - HYDRAULIC SYSTEMS

1

87748410

MOUNT

Cooler Painted

1шт.

2

115869A1

RESERVOIR, HYDRAULIC

Tank, 3 Gallon, Incl 39

1шт.

3

116093A1

STRAP

Oil Reservoir with T Bolts

2шт.

4

409312A1

OIL COOLER

6 Row

1шт.

5

84226974

FLOW CONTROL VALVE

1шт.

6

86989581

BRACKET

Oil Filter Mount

1шт.

7

87404509

FILTER ASSY

Fan Drive

1шт.

8

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 36

2шт.

9

577993

HYD CONNECTOR,1-1/16" - 12 JIC x 3/4" - 16 ORB

Incl 37

2шт.

10

84530

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, O-Ring

Incl 38

1шт.

11

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 36

2шт.

12

86624129

TEE,37 Degree, 3/4"-16 x 1 1/16"-12, Fem Sw Run x 1 1/16"-12

1шт.

13

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

1шт.

14

86521609

FLANGE NUT,Flg, 3/8"-16

4шт.

15

84569162

FLANGE BOLT

5/16 -18 x 4 Gr 5

2шт.

16

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

17

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

3шт.

18

86521612

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

19

9823743

FLANGE NUT,Flg, 5/16"-18

2шт.

20

87463224

HYDRAULIC HOSE

from Oil Cooller to Fan Drive Filter, 19 x 1400

1шт.

21

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 37

2шт.

22

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 36

1шт.

23

87577018

HYDRAULIC HOSE

from Fan Drive Filter to Oil Cooler 3/4 ID

1шт.

24

86505972

BOLT,5/16" - 18 x 2 - 1/4", Gr 5

4шт.

25

86521616

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

4шт.

26

9636698

NUT,1/2"-13, GB

4шт.

27

355955A1

HARNESS

Cyclo Cooling

1шт.

28

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.

29

86512960

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

30

219605

ELBOW,45 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

31

87506122

HOSE

from Flow Control Valve to Oil Cooler (3/4 x 1050mm Long)

1шт.

32

87748411

HYDRAULIC HOSE

from Flow Control Valve to Mounting Hitch Bracket (16 ID x 1050mm Long)

1шт.

33

87506122

HOSE

from Flow Control Valve to Mounting Hitch Bracket (19 ID x 1050mm Long)

1шт.

34

86513091

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

35

248985

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

36

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

37

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

38

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

39

129575A1

CAP

Hydraulic Oil Reservoir

1шт.

40

225315C1

ELEC CONNECTOR,Male, 2 Pin

Extra Power

1шт.

41

225316C1

ELEC CONNECTOR,Female, 2 Pin

Thermal Switch

1шт.

42

225295C1

ELEC CONNECTOR,Female, 3 Pin

Cooling Fan

1шт.
