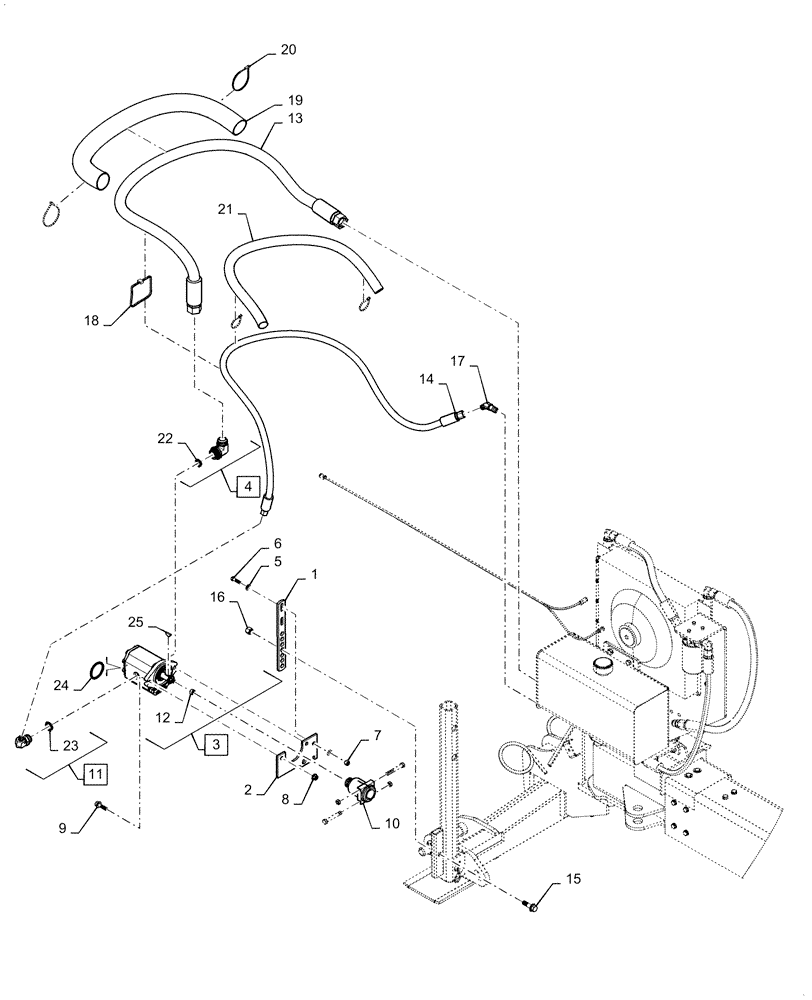

Запчасти Case IH 1255 (35.105.AA[04]) - PTO PUMP 22 GPM FOR 2 POINT HITCH (35) - HYDRAULIC SYSTEMS

1

437631A1

BRACKET

Adjusting

1шт.

2

437630A1

PLATE

Pump Mounting

1шт.

3

87619629

PUMP

22 GPM PTO Drive, Incl 12, 24, 25

1шт.

3

87619629R

REMAN-HYD PUMP

1шт.

3

87619629C

CORE-HYDRAULIC PUMP

Return Number

1шт.

4

84530

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, O-Ring

Incl 23

1шт.

5

87363

WASHER,0.47" ID x 0.92" OD x 0.07" Thk

4шт.

6

86050212

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

2шт.

7

86637736

NUT,7/16"-14, GB

2шт.

8

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

9

86521616

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

2шт.

10

1958268C1

COUPLING

1 3/4" Clamp Type

1шт.

11

87024324

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 5/16"-12, O-Ring

Incl 24

1шт.

12

280963

NUT,Nut, 1/2-20 GR 5 ZND

2шт.

13

47413536

HYDRAULIC HOSE

from PTO Pump to Tank (32mm ID x 2100mm Long)

1шт.

14

47452729

HOSE

from PTO Pump to Hitch Mounting Bracket (.625 x 2230mm Long)

1шт.

15

86521621

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

16

86639566

NUT,5/8"-11, GB

1шт.

17

86513098

45 ELBOW,45 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

18

87502039

CABLE TIE

Medium

1шт.

19

87458127

SLEEVE

Sleeve Protective

1шт.

20

291207C1

CLAMP

Cable Lock

6шт.

21

87458128

PROTECTIVE SLEEVE,64.5mm ID x 1117.6mm L

Sleeve Protective

1шт.

22

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

23

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

24

84391735

KIT

22 GPM PTO

1шт.

25

47471

WOODRUFF KEY,#15, 1/4" x 1", HT

22 GPM PTO

1шт.
