Запчасти Case IH 1255 (63.100.AG[02]) - LIQUID FERTILIZER SECTION CONTROL FOR 16 ROW (63) - CHEMICAL APPLICATORS

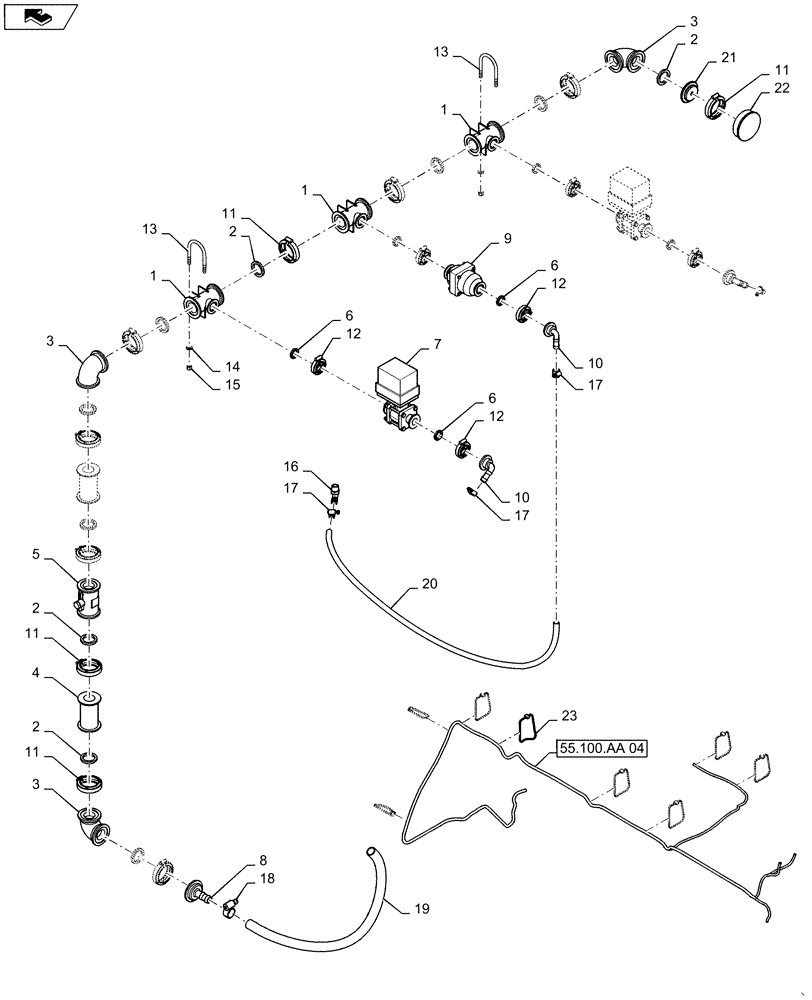

Схема запчастей Case IH 1255 - (63.100.AG[02]) - LIQUID FERTILIZER SECTION CONTROL FOR 16 ROW (63) - CHEMICAL APPLICATORS
55.100.aa 04
18
1
3
15
6
10
20
11
3
14
6
12
17
11
16
2
1
11
8
1
2
23
22
11
12
9
17
21
3
13
13
19
4
5
12
2
7
2
10
6
17

Артикул

Название

Примечание

Количество

1

86984089

TEE,2" Port x 1" Flanged Tee

2" x 2" x 1"

3шт.

2

408348A1

GASKET

1 - 1/2

10шт.

3

405782A1

COUPLING,2" x 2" 90 Degree Short Flange

90°

3шт.

4

442255A1

COUPLING,2" x 2" Flange x 41/2"Long

2" Manifold

2шт.

5

406037A2

METER

Flow

1шт.

6

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1"

6шт.

7

406039A1

SOLENOID VALVE,1" Electric Valve

1" FP Electric Ball

2шт.

8

86987616

FITTING,2" Flange x 1" Hose Barb

2" x 1"

1шт.

9

87505937

CHECK VALVE,1"

100 PSI

1шт.

10

405785A1

ELBOW

1" x 3/4"

3шт.

11

406040A1

CLAMP,90-100 in/lbs

2 "

10шт.

12

406041A1

CLAMP,58.51mm

1"

6шт.

13

87413269

U-BOLT

3/8 x 2.8 "

2шт.

14

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

15

86985855

LOCK NUT

3/8"

4шт.

16

405778A1

ELBOW

3/4" Male

1шт.

17

87625624

HOSE CLAMP,14.2mm ID - 26.9mm ID, SAE #10

4шт.

18

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

1шт.

19

134329C3

HOSE

50 Foot Bulk Roll, Cut to length 1600 mm

1шт.

20

241923A1

HOSE

100 Foot Bulk Roll, Cut to Length 1584 mm

1шт.

21

87670356

PLUG,2" Flange Plug with 1/4" FPT

2" with Gauge Port

1шт.

22

86990418

GAUGE

Pressure 4" 0 - 100 PSI

1шт.

23

87575103

HARNESS

Liquid Fertilizer

1шт.

24

87502038

CABLE TIE

Small

1шт.

Выбрано товаров: 24
