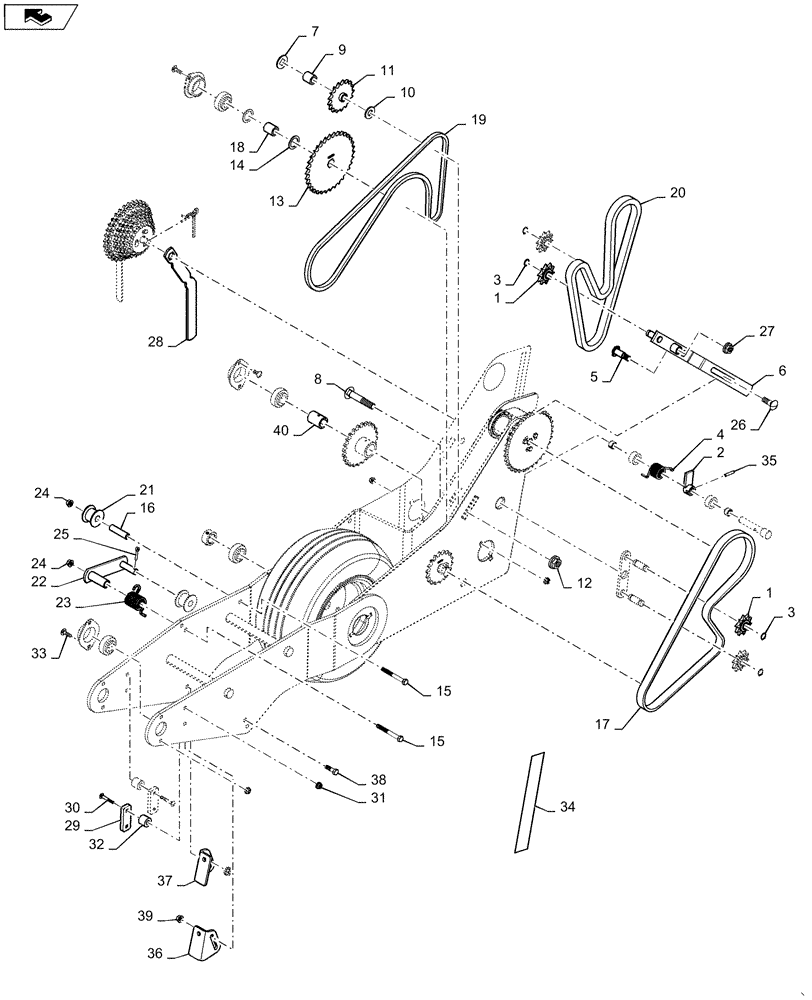

Запчасти Case IH 1255 (61.901.AA[03]) - TRANSMISSION MECHANICAL DRIVE CONTINUED (61) - METERING SYSTEM

1

87536428

SPROCKET

with Bushing

5шт.

2

84214688

LOCK

Idler

1шт.

3

83902308

SNAP RING

Circlip

4шт.

4

87627065

TORSION SPRING

Idler

1шт.

5

87630934

PIN

Idler Bar Hanger

1шт.

6

87707971

ARM

Torsion Idler

1шт.

7

87613305

LOCK WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

.656 x 1.50 x .105

1шт.

8

280563

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

2шт.

9

87671810

SPACER

Rear Frame

1шт.

10

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

11

298009A1

DRIVE SPROCKET

17 Tooth

1шт.

12

84180923

FLANGE NUT

.625"

2шт.

13

87610749

SPROCKET

34 Tooth

1шт.

14

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

2шт.

15

9637240

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

2шт.

16

87505783

SLEEVE

Tensioner Pivot

2шт.

17

84393499

CHAIN

Seed Drive 84 Links 52.5 Inch Length

1шт.

18

87629513

SPACER

Idler Sprocket

1шт.

19

84393498

CHAIN

Seed Drive 98 Links 61.25 Inch Length

1шт.

20

84393497

CHAIN

Seed Drive 82 Links 51.25 Inch Length

1шт.

21

1277726C1

ROLLER,48mm OD x 34mm L

Idler

2шт.

22

87550916

TENSIONER

Chain Painted Red

1шт.

23

87505794

TORSION SPRING

Idler

1шт.

24

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

25

87397

COTTER PIN,3/16" OD x 1" L

1шт.

26

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

1шт.

27

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

28

87629554

ADJUSTING TOOL

Chain Tension Releaser Painted Red

1шт.

29

87722064

WEAR PAD

Transmission

2шт.

30

280778

CARRIAGE BOLT

.250 x 1.75 Gr 5

4шт.

31

523282

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

32

87480670

SPACER

1.0 OD x 0.5 ID x 0.875

4шт.

33

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

34

87716619

DECAL

Transmission Operation

1шт.

35

84523392

PIN

1/4 x 1- 3/8

1шт.

36

84249548

BRACKET

Trans Stop Left Painted Red

1шт.

37

84249551

BRACKET

Trans Stop Right Painted Red

1шт.

38

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

39

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

40

84516317

BUSHING

Sprocket

1шт.
