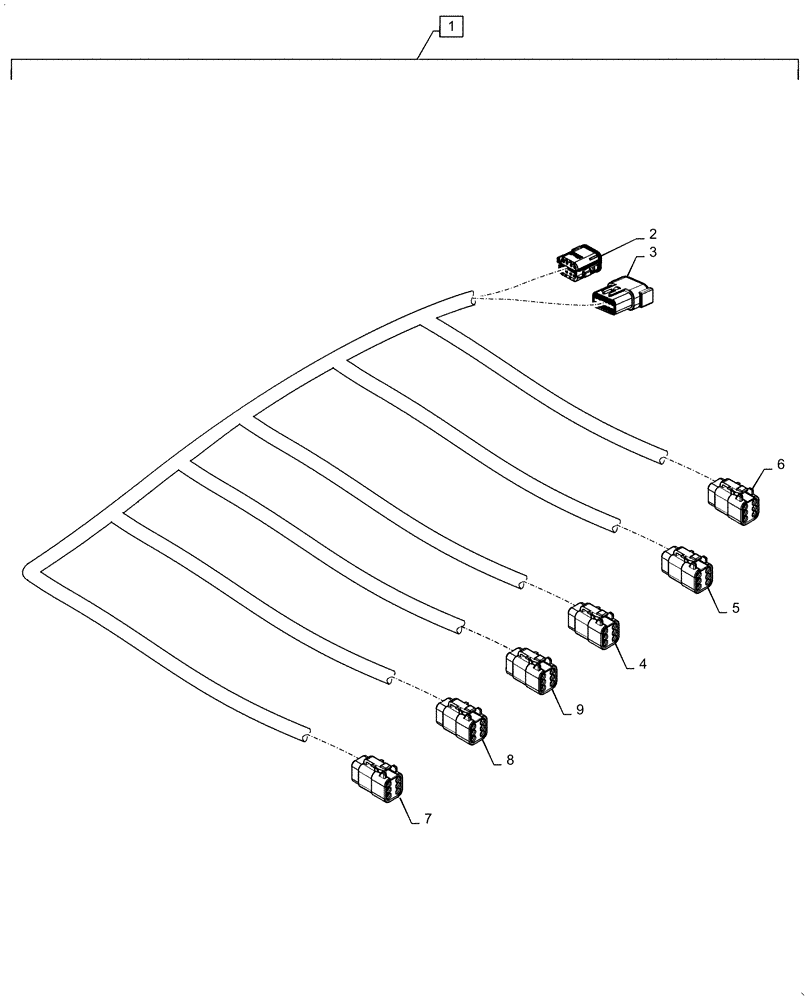

Запчасти Case IH 1255 (55.100.AA[14]) - LH, HARNESS ASSY, SEED SENSOR, 16 ROW WING (55) - ELECTRICAL SYSTEMS

1

84539984

WIRE HARNESS

Seed Sensor, 16 Row Wing, Incl 2 - 9

1шт.

2

87700325

ELEC CONNECTOR,Female, 8 Cavities

X-942, Wing Clutches

1шт.

2

84806312

LOCKING TAB,Wedge Lock

X-942, Wing Clutches

1шт.

2

84068583

PLUG,12 - 16 Ga, White

X-942, Wing Clutches

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-942, Wing Clutches

6шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X-942, Wing Clutches

1шт.

3

87700155

ELEC CONNECTOR,Female, 12 Cavities

X-930, Wing Seed Sensor

1шт.

3

87705201

WEDGE

X-930, Wing Seed Sensor

1шт.

3

84807680

PLUG

X-930, Wing Seed Sensor

4шт.

3

87696141

TERMINAL

X-930, Wing Seed Sensor

8шт.

4

87700107

ELEC CONNECTOR

X-880-4, Clutch and Seed 4/ 13

1шт.

4

87705582

ELEC CONNECTOR

X-880-4, Clutch and Seed 4/ 13

1шт.

4

84807680

PLUG

X-880-4, Clutch and Seed 4/ 13

1шт.

4

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-880-4, Clutch and Seed 4/ 13

5шт.

5

87700107

ELEC CONNECTOR

X-880-5, Clutch and Seed 5/ 12

1шт.

5

87705582

ELEC CONNECTOR

X-880-5, Clutch and Seed 5/ 12

1шт.

5

84807680

PLUG

X-880-5, Clutch and Seed 5/ 12

1шт.

5

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-880-5, Clutch and Seed 5/ 12

5шт.

6

87700107

ELEC CONNECTOR

X-880-6, Clutch and Seed 6/ 11

1шт.

6

87705582

ELEC CONNECTOR

X-880-6, Clutch and Seed 6/ 11

1шт.

6

84807680

PLUG

X-880-6, Clutch and Seed 6/ 11

1шт.

6

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-880-6, Clutch and Seed 6/ 11

5шт.

7

87700107

ELEC CONNECTOR

X-880-1, Clutch and Seed 1/ 16

1шт.

7

87705582

ELEC CONNECTOR

X-880-1, Clutch and Seed 1/ 16

1шт.

7

84807680

PLUG

X-880-1, Clutch and Seed 1/ 16

1шт.

7

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-880-1, Clutch and Seed 1/ 16

5шт.

8

87700107

ELEC CONNECTOR

X-880-2, Clutch and Seed 2/ 15

1шт.

8

87705582

ELEC CONNECTOR

X-880-2, Clutch and Seed 2/ 15

1шт.

8

84807680

PLUG

X-880-2, Clutch and Seed 2/ 15

1шт.

8

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-880-2, Clutch and Seed 2/ 15

5шт.

9

87700107

ELEC CONNECTOR

X-880-3, Clutch and Seed 3/ 14

1шт.

9

87705582

ELEC CONNECTOR

X-880-3, Clutch and Seed 3/ 14

1шт.

9

84807680

PLUG

X-880-3, Clutch and Seed 3/ 14

1шт.

9

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-880-3, Clutch and Seed 3/ 14

5шт.
