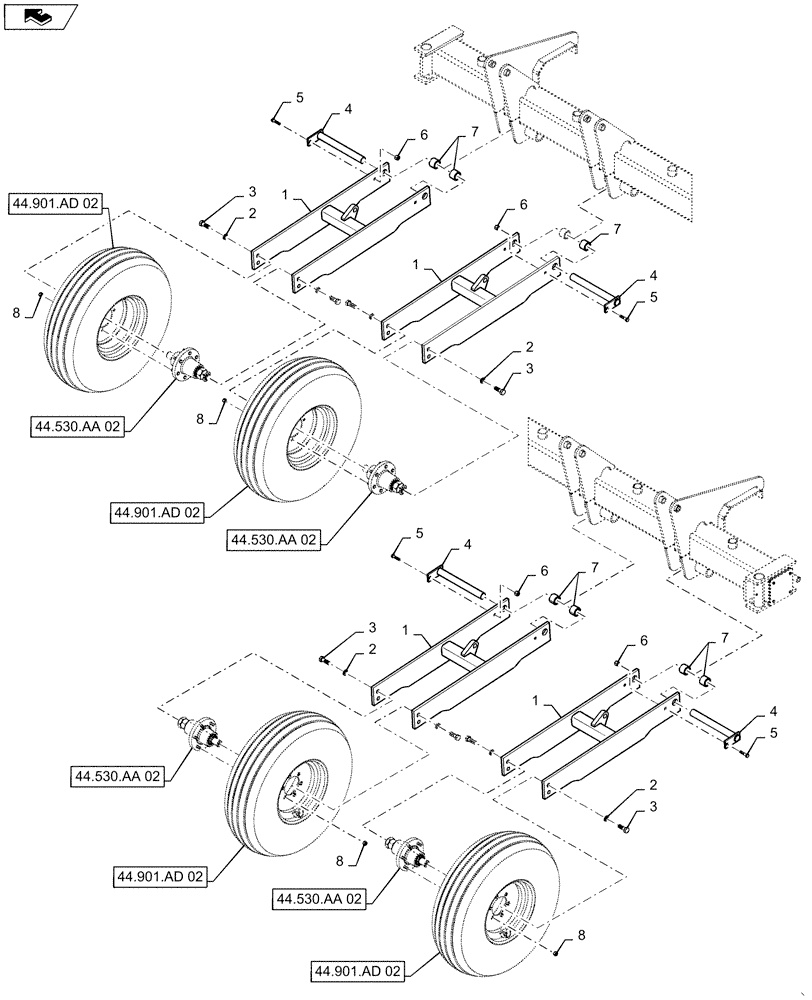

Запчасти Case IH 1255 (44.901.AA[02]) - WING WHEEL ASSEMBLY FOR 16 ROW (44) - WHEELS

1

84126433

FRAME

Wing Wheel, Painted Red

4шт.

2

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

8шт.

3

9635076

BOLT

.750 x 2.00 Gr 8

8шт.

4

87632193

PIVOT PIN

Wing Wheel

4шт.

5

80281058

SCREW

.500 x 2.00 Gr 8

4шт.

6

87530607

NUT

1/2"

4шт.

7

87503066

BUSHING,38.29mm ID x 50.93mm OD x 37.35mm L

8шт.

8

F23214

WHEEL NUT

1/2 - 20

1шт.
