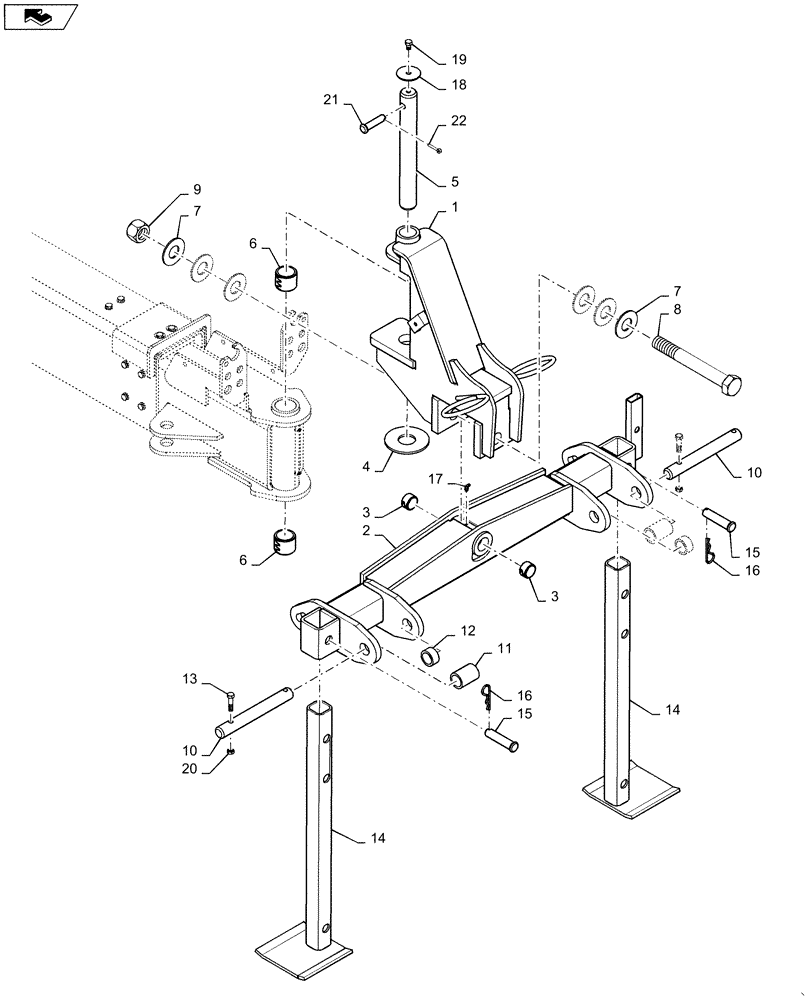

Запчасти Case IH 1255 (39.110.AB[03]) - HITCH 2 POINT 12 AND 16 ROW (39) - FRAMES AND BALLASTING

1

84259414

KNUCKLE

2 Point Hitch, Red

1шт.

2

84484096

TUBE

W/ Hitch Cross

1шт.

3

22093

BUSHING,1-1/2" ID x 1-3/4" OD x 1" Thk

2шт.

4

87634870

WEAR PAD

52.3 ID x 133 OD

1шт.

5

87491100

PIN

50.5 x 420mm

1шт.

6

87745612

BUSHING

2.50 x 2 x 2

2шт.

7

87371

WASHER,1.62" ID x 3.5" OD x 0.18" Thk

6шт.

8

87358257

BOLT

1.50 x 12.00 Gr 8

1шт.

9

87020431

LOCK NUT

1-1/2

1шт.

10

87566119

PIN

Lower 3 Point

2шт.

11

599801R1

SPACER

Hitch Pin

2шт.

12

284219A1

SPACER

Hitch Pin

2шт.

13

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

14

87549566

STAND

Planter

2шт.

15

87403990

HEADED PIN

1.00 x 4.28

2шт.

16

1978738C1

HAIR PIN COTTER

2шт.

17

80718

LUBE NIPPLE,1/4"-28 x 90 Degree

1шт.

18

87650708

PLATE

Hitch Pin Cover Red

1шт.

19

9627879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

1шт.

20

86632537

THIN NUT,1/2"-13, GB, Thin

4шт.

21

86624078

HEADED PIN,3/4" x 3 1/4", G5

1шт.

22

80753

COTTER PIN,1/4" x 1 1/2"

1шт.
