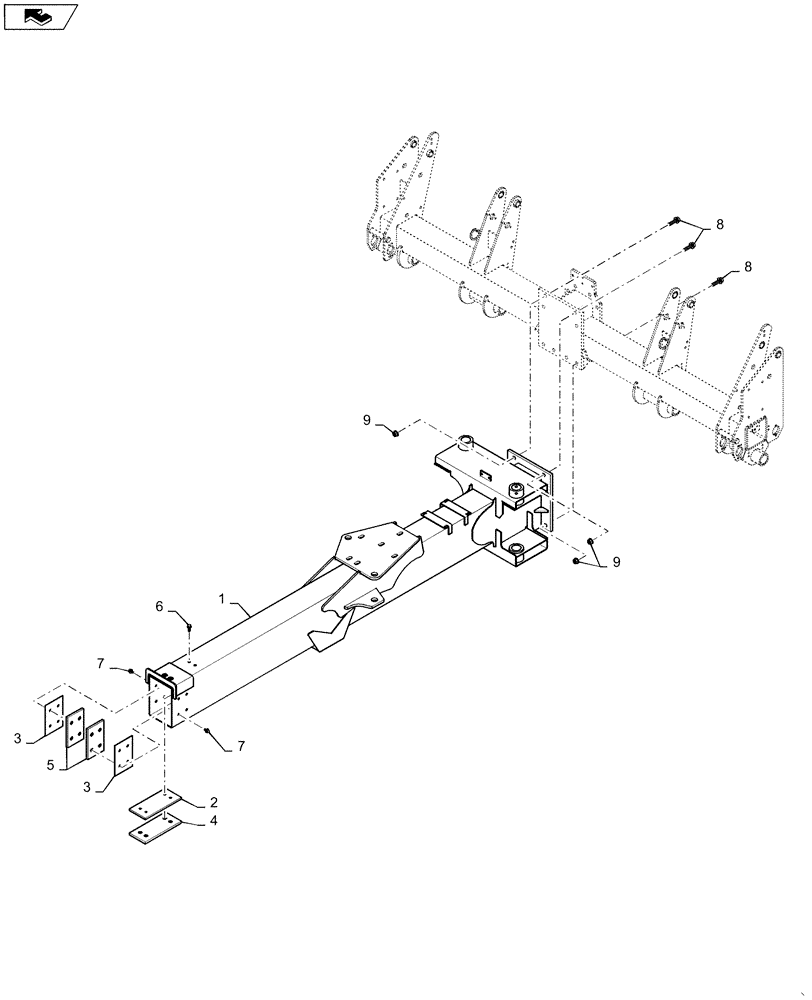

Запчасти Case IH 1255 (39.110.AB[02]) - OUTER HITCH FOR 12 ROW 2 POINT (39) - FRAMES AND BALLASTING

1

84469906

HITCH

Outer, 12 Row, Painted Red

1шт.

2

87659643

PLATE

Anti Skid Support, Red

1шт.

3

87659647

PLATE

Skid Shim, Red

2шт.

4

87504521

SKID/SHOE

5.5 x 12.5"

1шт.

5

87504522

SKID/SHOE

5.5 x 9.0"

2шт.

6

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

7

86544354

FLANGE BOLT

1/2 x 0.75

8шт.

8

86637940

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

8шт.

9

84490435

FLANGE NUT

3/4 Gr 8

8шт.
