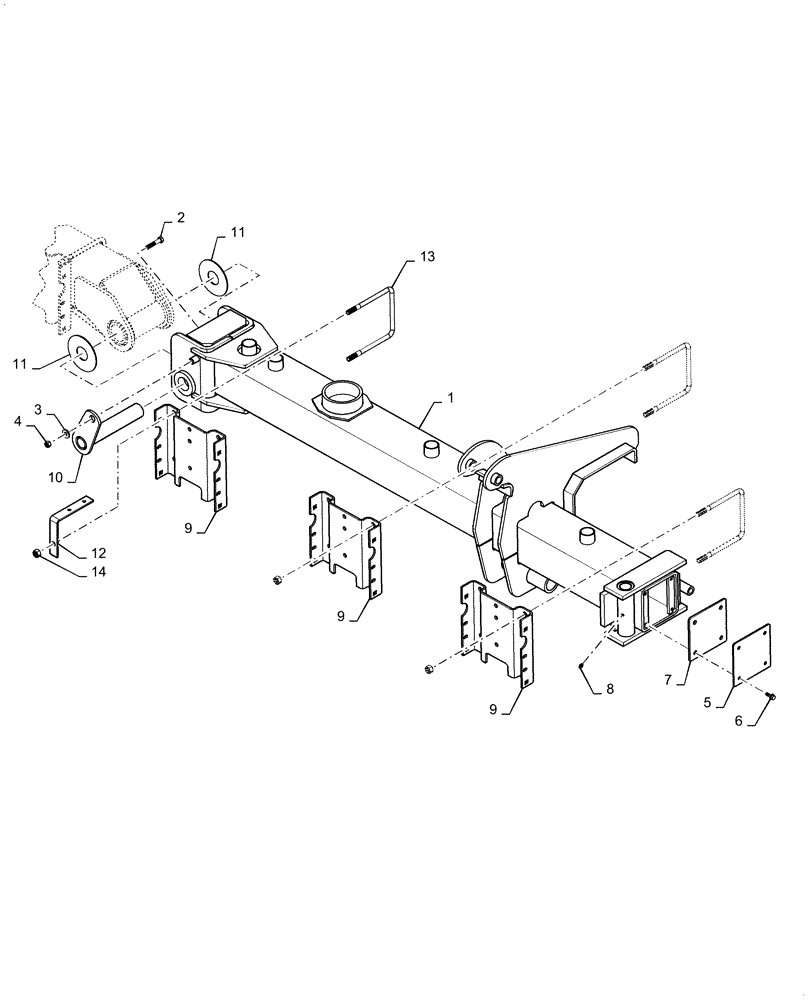

Запчасти Case IH 1255 (39.100.AN[05]) - OUTER WING RIGHT FOR 12 ROW (39) - FRAMES AND BALLASTING

1

84278148

BEAM

Right Outer Wing, 12 Row, Painted Red

1шт.

2

20987

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

1шт.

3

87613265

WASHER,0.53" ID x 1.25" OD x 0.13" Thk

1шт.

4

9803187

NUT,1/2"-13, G8

1шт.

5

87643100

PLATE

Vacuum Cleanout, Painted Red

1шт.

6

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

7

87471358

GASKET

Toolbar Cleanout

1шт.

8

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

9

141728C5

BRACKET

Channel Painted, Red

3шт.

10

84277815

PIN,50.8mm OD x 292.54mm L

Wing Flex

1шт.

11

84278062

THRUST WASHER

12 Row

2шт.

12

87496596

BRACKET

Support, Red

1шт.

13

1250813C1

U-BOLT

5/8 - 11

3шт.

14

280374

NUT,Hex, 5/8" - 11, Gr 5

12шт.
