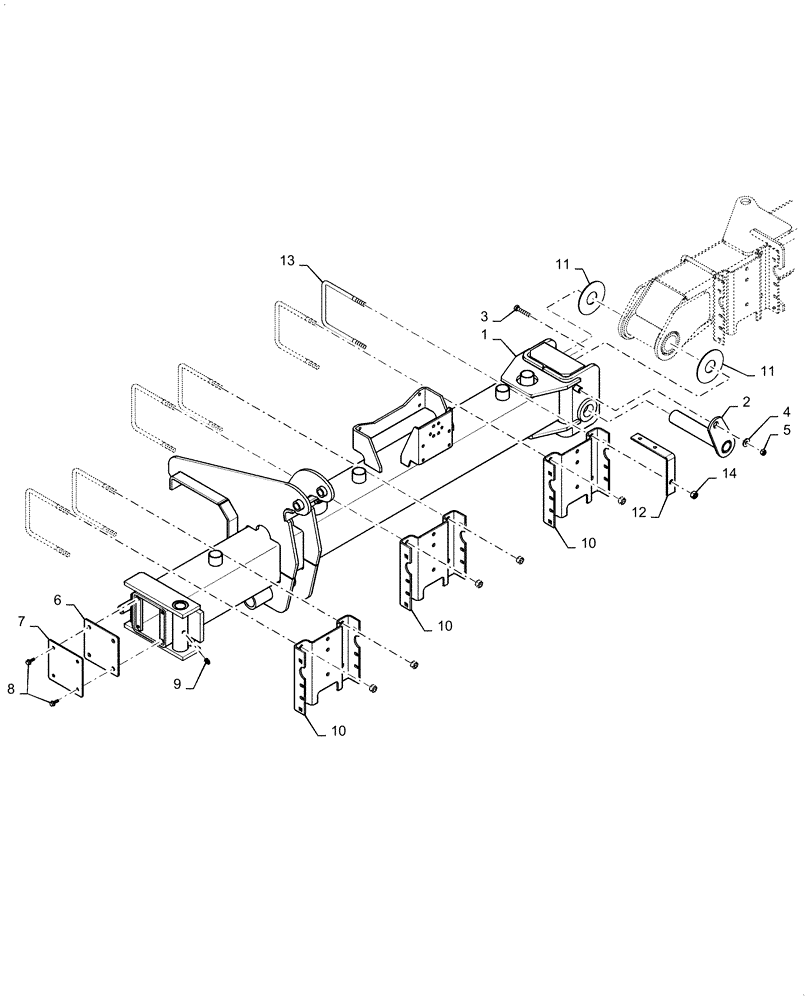

Запчасти Case IH 1255 (39.100.AN[04]) - OUTER WING LEFT FOR 12 ROW (39) - FRAMES AND BALLASTING

1

84278150

BEAM

Left Outer Wing, Painted Red

1шт.

2

84277815

PIN,50.8mm OD x 292.54mm L

Wing Flex

1шт.

3

20987

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

1шт.

4

87613265

WASHER,0.53" ID x 1.25" OD x 0.13" Thk

.531 x 1.250 x .134

1шт.

5

9803187

NUT,1/2"-13, G8

1шт.

6

87471358

GASKET

Tool Bar Cleanout

1шт.

7

87643100

PLATE

Vacuum Cleanout

1шт.

8

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

9

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

10

141728C5

BRACKET

Channel, Painted

3шт.

11

84278062

THRUST WASHER

12 Row

2шт.

12

87496596

BRACKET

Support, Red

1шт.

13

1250813C1

U-BOLT

5/8 - 11

6шт.

14

280374

NUT,Hex, 5/8" - 11, Gr 5

12шт.
