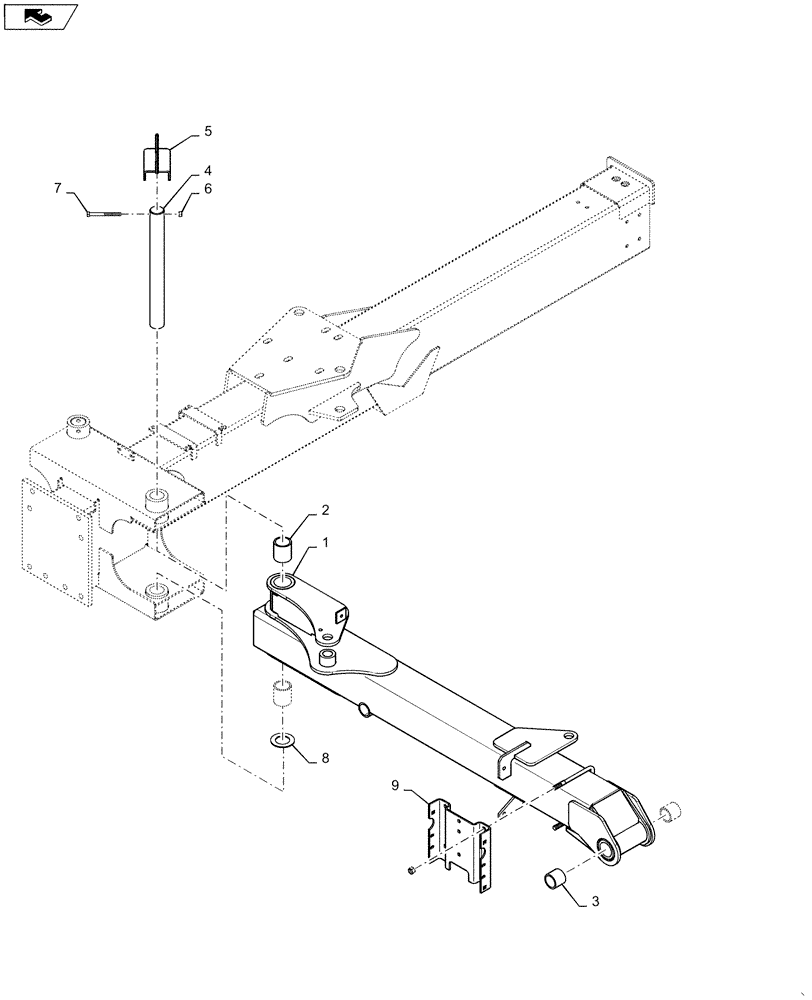

Запчасти Case IH 1255 (39.100.AN[03]) - INNER WING RIGHT FOR 12 ROW (39) - FRAMES AND BALLASTING

1

84278144

BEAM

Right Inner Wing, Painted Red

1шт.

2

87632787

BUSHING

2.75 OD x 2.25 ID

2шт.

3

87632788

BUSHING

2.50 x 2.0 ID

2шт.

4

87596269

PIVOT PIN

Wing Fold

1шт.

5

87476404

GUIDE

Hydraulic Hose, Painted Red

1шт.

6

9803187

NUT,1/2"-13, G8

1шт.

7

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1шт.

8

87658075

WASHER

2.25 x 3.75 x 0.13

1шт.

9

141728C5

BRACKET

Channel, Painted

1шт.
