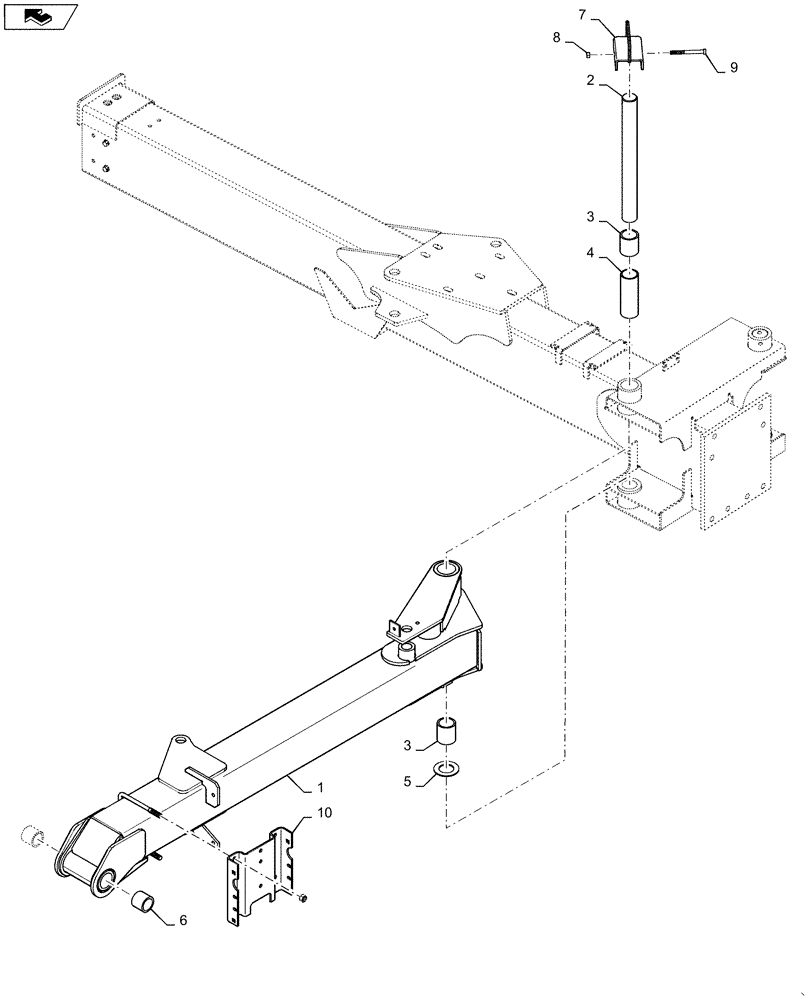

Запчасти Case IH 1255 (39.100.AN[02]) - INNER WING LEFT FOR 12 ROW (39) - FRAMES AND BALLASTING

1

84278146

BEAM

Inner Left Wing, Painted Red

1шт.

2

87596269

PIVOT PIN

Wing Fold

1шт.

3

87632787

BUSHING

2.75 OD x 2.25 ID

2шт.

4

87577111

PIN

Sleeve

1шт.

5

87658075

WASHER

Flat 2.25 x 3.75 x 0.13

1шт.

6

87632788

BUSHING

2.5 OD x 2.0 ID

2шт.

7

87542384

GUIDE

Hydraulic Hose, Painted Red

1шт.

8

84233543

NUT

1шт.

9

280290

BOLT,Hex, 1/2"-13 x 5 1/4", G5

1шт.

10

141728C5

BRACKET

Channel, Painted

1шт.
