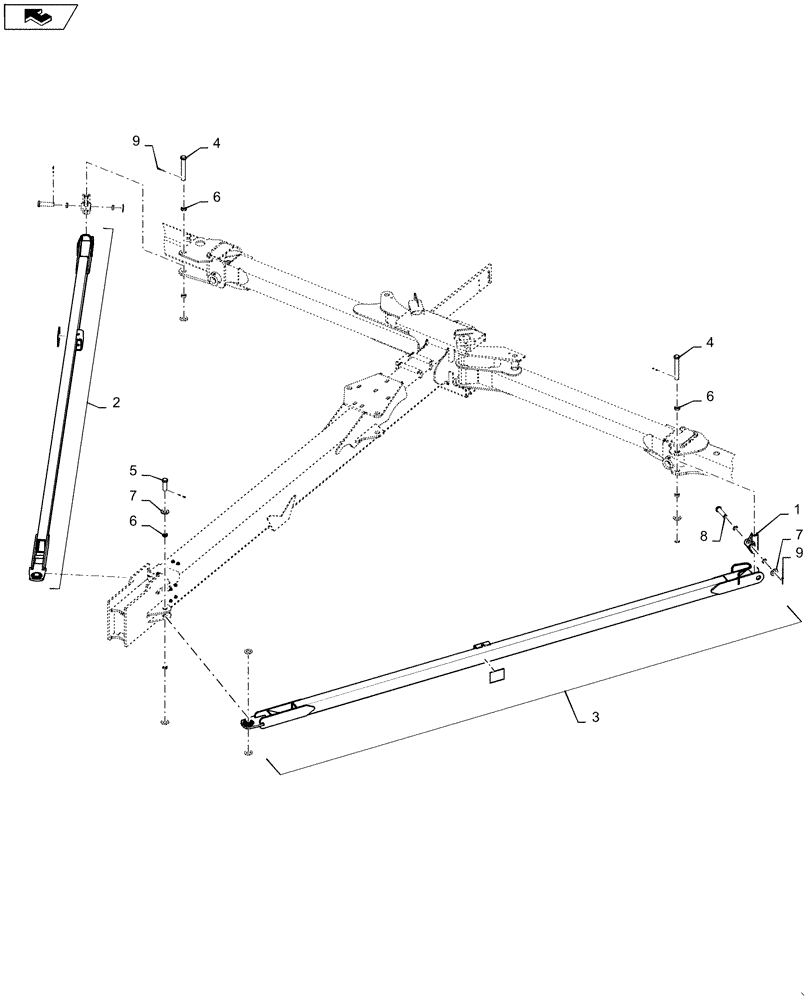

Запчасти Case IH 1255 (39.100.AN[01]) - DRAFT TUBES FOR 12 ROW (39) - FRAMES AND BALLASTING

1

87614089

KNUCKLE JOINT

Draft Tube

2шт.

2

87717071

TUBE

Right Draft, Painted Red, Incl Decals

1шт.

3

87717070

TUBE

Left Draft, Painted Red, Incl Decals

1шт.

4

87575683

HEADED PIN

1.25 x 8.750

2шт.

5

87575682

HEADED PIN

1.25 x 3.800

2шт.

6

87504524

BUSHING

Tension

12шт.

7

87023158

WASHER,1.31" ID x 2.5" OD x 0.15" Thk

10шт.

8

87575681

HEADED PIN

1.25 x 4.800 Gr 5

2шт.

9

88182

COTTER PIN,1/4" OD x 2" L

6шт.
