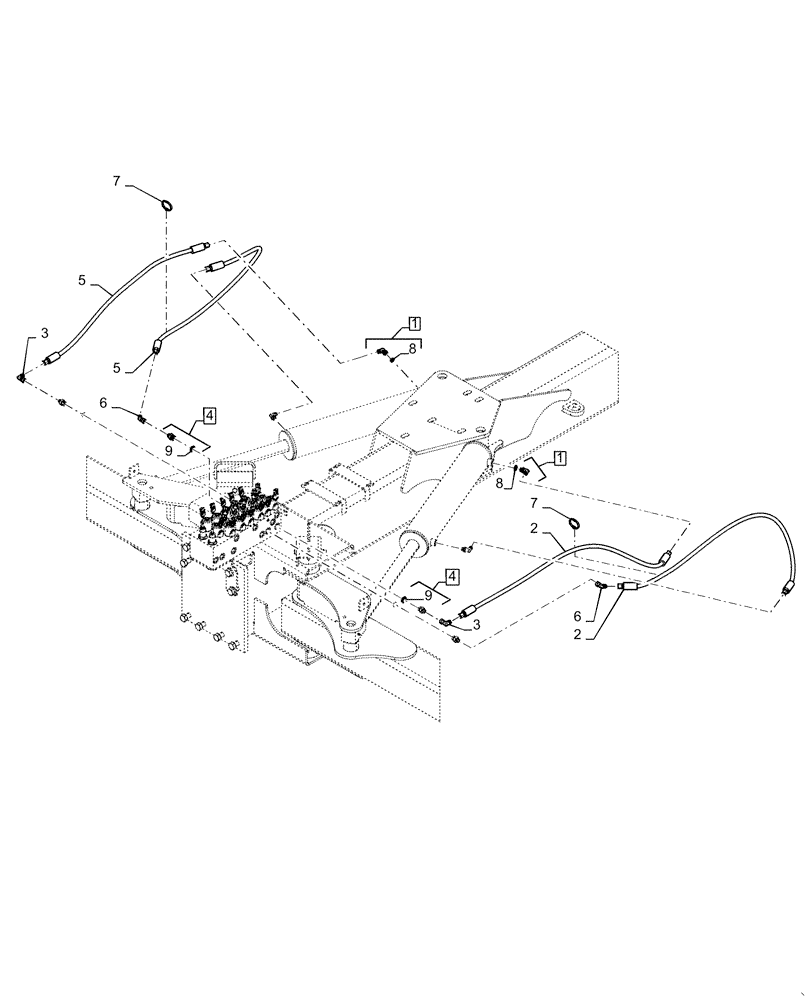

Запчасти Case IH 1255 (35.948.AD[01]) - HYDRAULICS FOLD FOR 12 AND 16 ROW FRONT FOLDING TRAILER (35) - HYDRAULIC SYSTEMS

1

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 8

4шт.

2

47446546

HOSE

from Hydraulic Fold Cylinder to Hydraulic Lift Fold Valve Assy (.375 x 1270mm Long)

2шт.

3

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

4

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

Incl 9

4шт.

5

47447559

HOSE

from Hydraulic Fold Cylinder to Hydraulic Lift Fold Valve Assy (.375 x 1395mm Long)

2шт.

6

86512959

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

2шт.

7

87502038

CABLE TIE

Small

2шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
