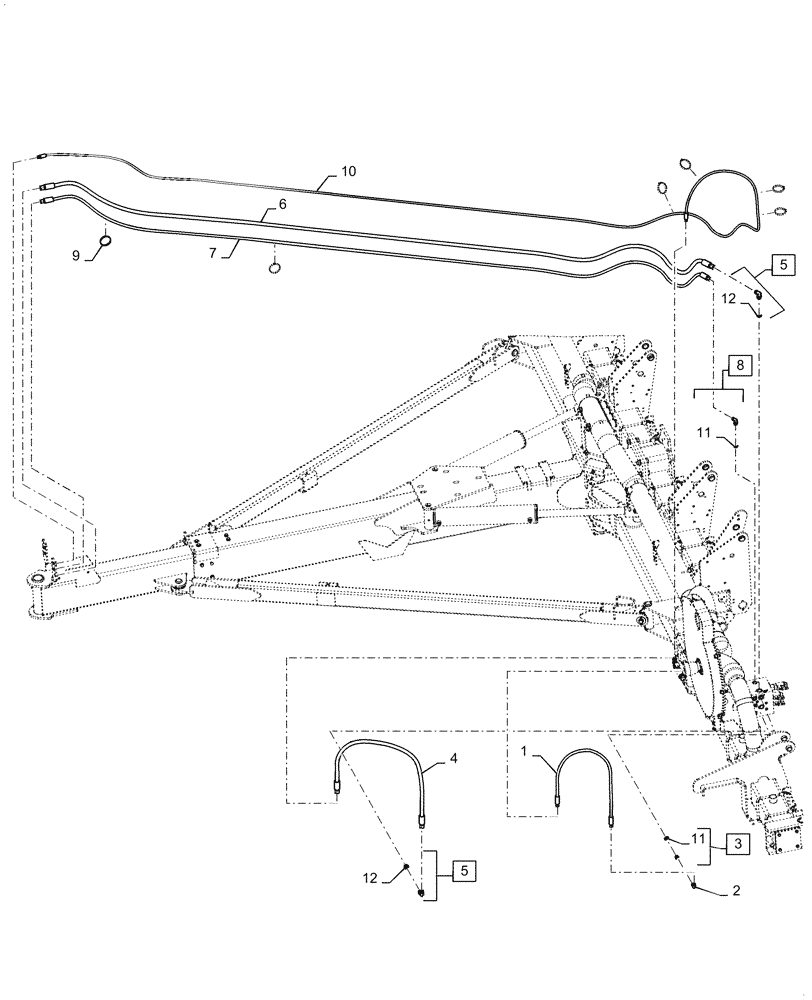

Запчасти Case IH 1255 (35.780.AD[02]) - HYDRAULIC VACUUM FAN HOSES 12 ROW ADVANCE FARMING SYSTEM (35) - HYDRAULIC SYSTEMS

1

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

from Valve Port M1 to Fan Motor Port D (.5" x 50" Long)

1шт.

2

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

3

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl 11

1шт.

4

87463224

HYDRAULIC HOSE

from Valve Port M2 to Fan Motor Port C (19 ID x 1400 Long)

1шт.

5

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 12

2шт.

6

87655958

HYDRAULIC HOSE

from Fan Pressure and Return Hose Connects to Port T on Valve Block (19mm ID x 6050mm Long)

1шт.

7

47452684

HOSE

Fan Pressure Hose Connects to Port P on Valve Block (16mm ID x 6050mm Long)

1шт.

8

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl 11

1шт.

9

87502039

CABLE TIE

9шт.

10

435691A1

HYDRAULIC HOSE

Case Drain Hose Connects to Case Drain Port on Fan Motor

1шт.

11

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
