(35.747.AE[01]) - LIQUID FERTILIZER HYDRAULICS FOR 12 ROW

Запчасти Case IH 1255 (35.747.AE[01]) - LIQUID FERTILIZER HYDRAULICS FOR 12 ROW (35) - HYDRAULIC SYSTEMS

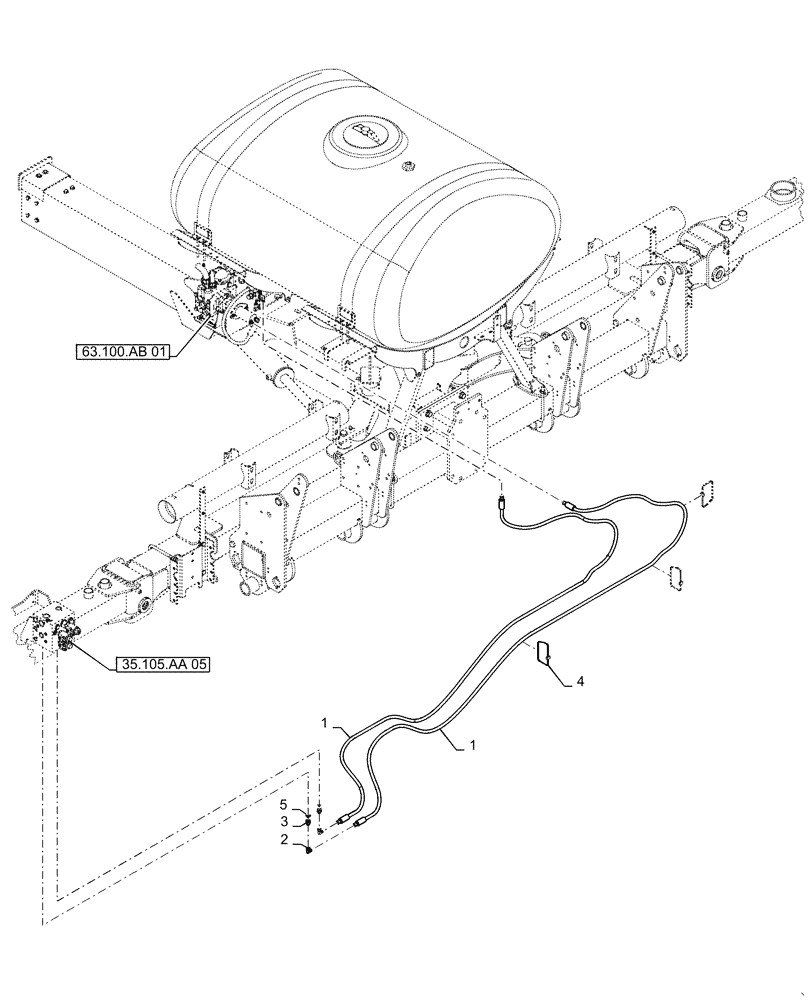

Схема запчастей Case IH 1255 - (35.747.AE[01]) - LIQUID FERTILIZER HYDRAULICS FOR 12 ROW (35) - HYDRAULIC SYSTEMS
63.100.ab 01
3
2
4
1
5
1
35.105.aa 05
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47452788

HOSE

Hydraulic, from Liquid Fertilizer Pump to Multi Valve (3/8" x 170mm Long)

2шт.

2

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

3

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

Incl 5

2шт.

4

87502038

CABLE TIE

Medium

3шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Выбрано товаров: 5
