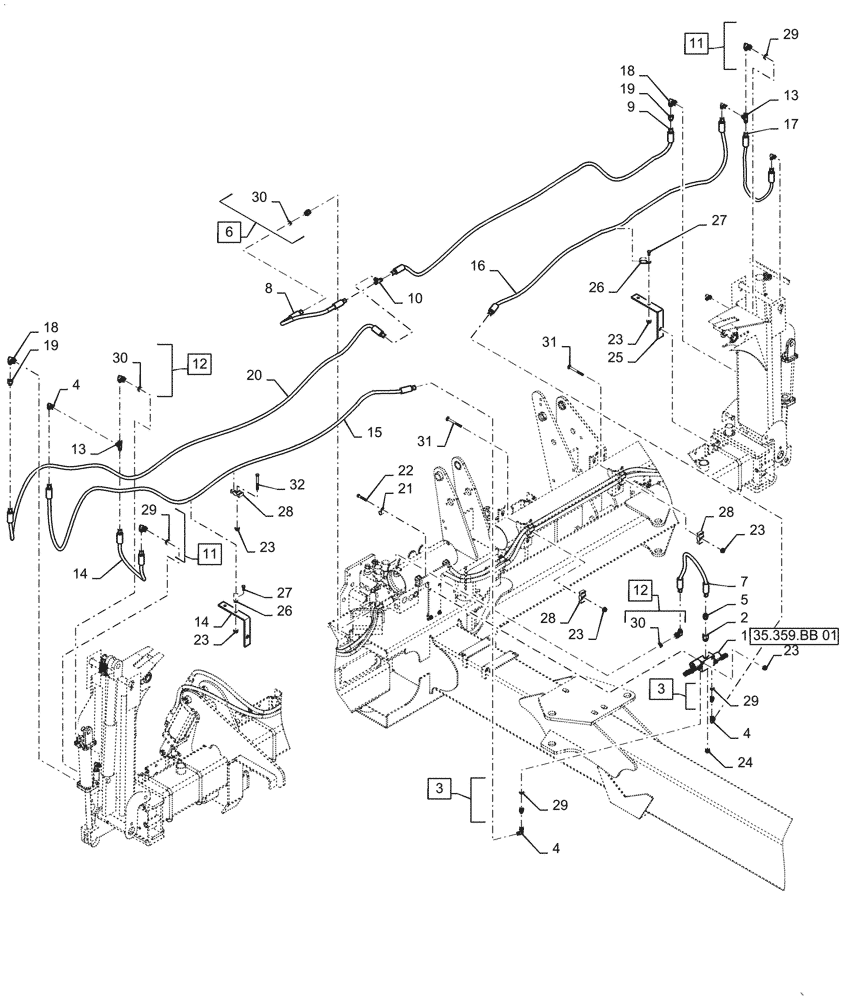

Запчасти Case IH 1255 (35.746.AC[01]) - 12 ROW FRONT FOLDING MARKER HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

87463248

VALVE

Marker Block

1шт.

2

84323487

HYD CONNECTOR,7/8"-14 x 3/4"-16 ORB

5/8" Male

1шт.

3

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 29

2шт.

4

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

5шт.

5

1263477C3

HYD CONNECTOR

Orifice

1шт.

6

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

Incl 30

1шт.

7

47446533

HOSE

from Port S of Left Rear Block Valve to Port V1 (3/8 x 585mm Long)

1шт.

8

47446532

HOSE

from Return Tee to Port R of Marker Valve (.375 x 535mm Long)

1шт.

9

47446535

HOSE

from LH Cylinder to Return Tee (.375 x 5461mm Long)

1шт.

10

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

11

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 29

2шт.

12

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

Incl 30

3шт.

13

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

14

47446537

HOSE

from LH Cylinder (.375 x 430mm Long)

1шт.

15

47446536

HOSE

from Port C1 of Marker Valve to RH Clinder Base End (.375 x 5715mm Long)

1шт.

16

47446536

HOSE

from Port C2 of Marker Valve to LH Clinder Base End (.375 x 5715mm Long)

1шт.

17

47446538

HOSE

from LH Marker Cylinder Top End to Tee (.375 x 785mm Long)

1шт.

18

1277964C1

ELBOW

Flow Restrictor

2шт.

19

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

2шт.

20

47446535

HOSE

from RH Marker Cylinder Rod to Return Tee (.375 x 5461mm Long)

1шт.

21

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

22

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

23

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

24

9625178

PLUG,9/16" - 18 ORB

1шт.

25

87496596

BRACKET

Support Red

2шт.

26

22510700

HOSE CLAMP,15.86mm

3/8" ID

2шт.

27

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

28

87482623

CLAMP

Large

6шт.

29

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

30

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

31

47588026

BOLT

4шт.

32

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

2шт.
