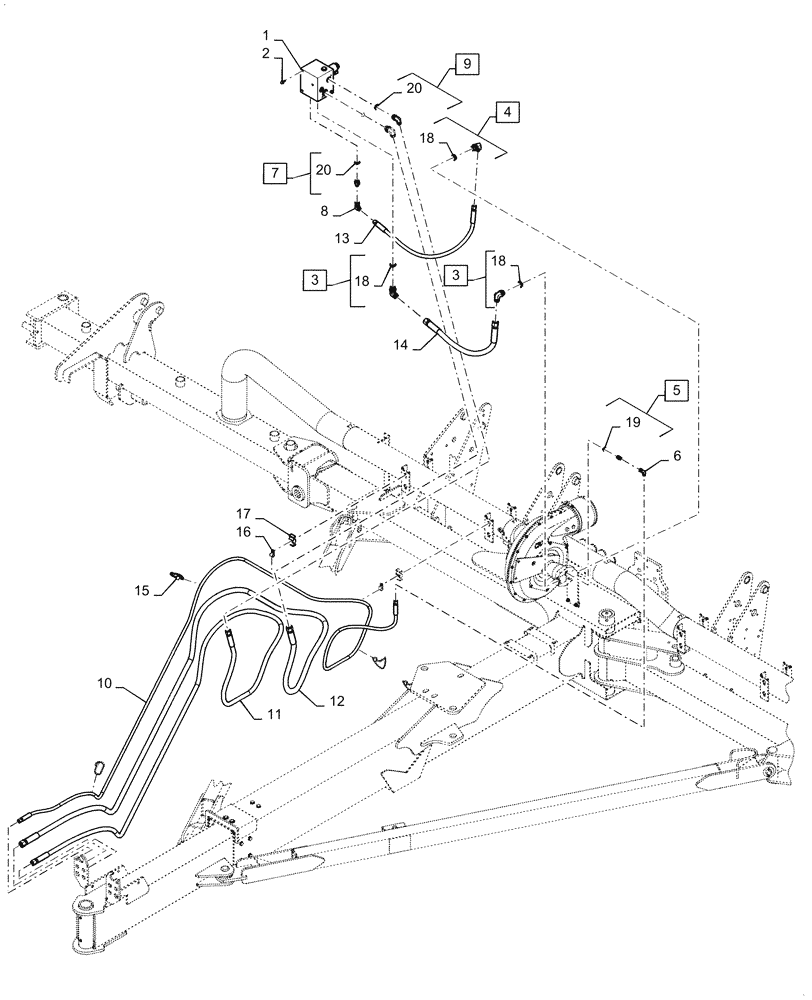

Запчасти Case IH 1255 (35.744.AC[06]) - HYDRAULIC BULK FILL WITH PTO 12 ROW ADVANCE FARMING SYSTEM FFT (35) - HYDRAULIC SYSTEMS

1

84538083

VALVE

Block Bulk Fill

1шт.

2

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

3

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 18

3шт.

4

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

Incl 18

1шт.

5

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 19

1шт.

6

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

7

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl 20

1шт.

8

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

9

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl 20

1шт.

10

1284266C1

HYDRAULIC HOSE

from Drain Motor Port to Hitch Mounting Bracket (9.5mm ID x 7745mm Long)

1шт.

11

84526391

HOSE

from Port P1 of Block Bulk Fill Valve to Hitch Mounting Bracket (16mm ID x 7150mm Long)

1шт.

12

84526389

HOSE

from Port T1 of Block Bulk Fill Valve to Hitch Mounting Bracket (19mm ID x 7150mm Long)

1шт.

13

1960386C1

HYDRAULIC HOSE

from Motor Port D to Port B1 of Block Bulk Fill Valve (12.5mm ID x 890mm Long)

1шт.

14

84223562

HYDRAULIC HOSE

from Motor Port C to Port B2 of Block Bulk Fill Valve (19mm ID x 750mm Long)

1шт.

15

87502038

CABLE TIE

Small

4шт.

16

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

17

87482623

CLAMP

Large

2шт.

18

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
