(35.162.AB[03]) - HYDRAULIC VALVE LIFT AND FOLD, ASSY

Запчасти Case IH 1255 (35.162.AB[03]) - HYDRAULIC VALVE LIFT AND FOLD, ASSY (35) - HYDRAULIC SYSTEMS

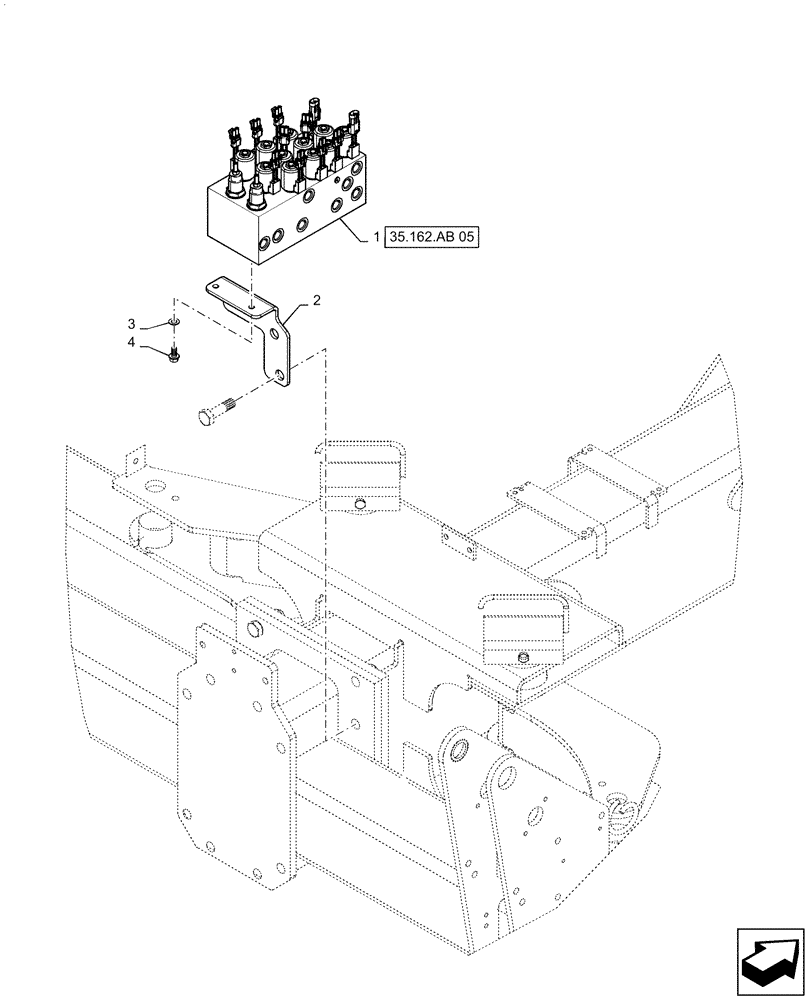

Схема запчастей Case IH 1255 - (35.162.AB[03]) - HYDRAULIC VALVE LIFT AND FOLD, ASSY (35) - HYDRAULIC SYSTEMS
35.162.ab 05
4
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87600220

VALVE

Lift and Fold Assy, 12 row

1шт.

2

87475176

BRACKET

Valve, 12 Row

1шт.

3

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.
