(79.904.AA[01]) - BULK FILL, CENTER HOSES, 12 ROW 30" SPACING

Запчасти Case IH 1255 (79.904.AA[01]) - BULK FILL, CENTER HOSES, 12 ROW 30" SPACING (79) - PLANTING

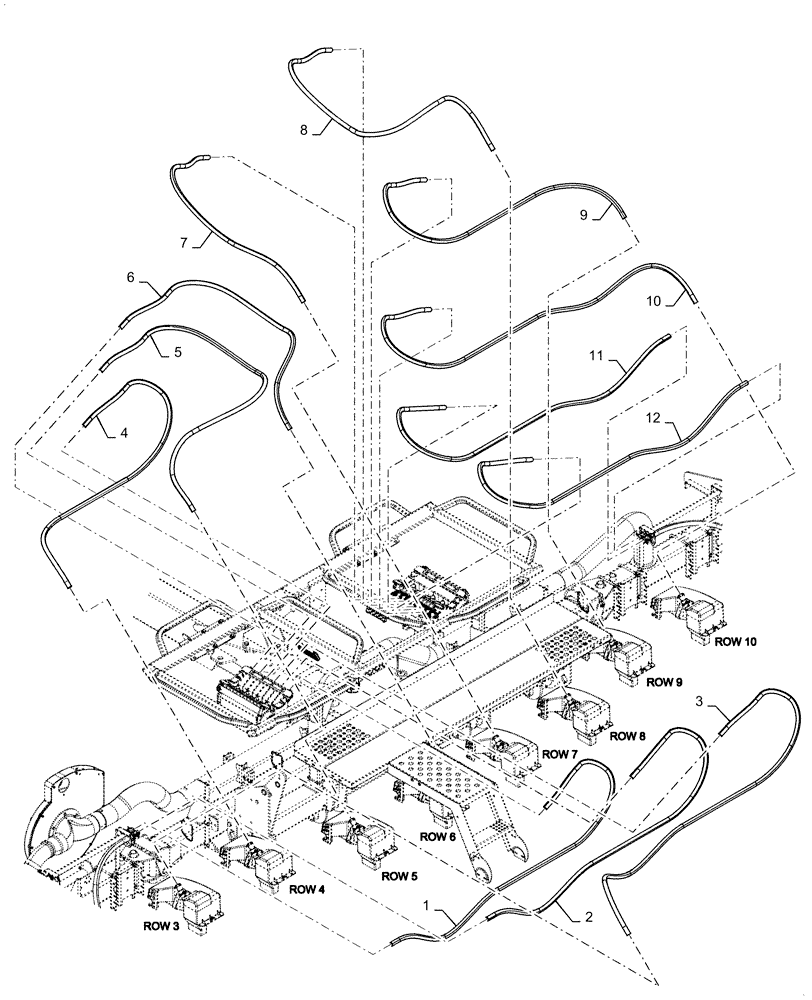

Схема запчастей Case IH 1255 - (79.904.AA[01]) - BULK FILL, CENTER HOSES, 12 ROW 30" SPACING (79) - PLANTING
6
10
12
5
9
4
1
3
11
2
7
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87483976

HOSE

1" ID x 3600mm, from Distribution Port to Seed Hopper

1шт.

2

87483976

HOSE

1" ID x 3630mm, from Distribution Port to Seed Hopper

1шт.

3

87483976

HOSE

1" ID x 4080mm, from Distribution Port to Seed Hopper

1шт.

4

87483976

HOSE

1" ID x 3400mm, from Distribution Port to Seed Hopper

1шт.

5

87483976

HOSE

1" ID x 3360mm, from Distribution Port to Seed Hopper

1шт.

6

87483976

HOSE

1" ID x 2530mm, from Distribution Port to Seed Hopper

1шт.

7

87483976

HOSE

1" ID x 2530mm, from Distribution Port to Seed Hopper

1шт.

8

87483976

HOSE

1" ID x 3360mm, from Distribution Port to Seed Hopper

1шт.

9

87483976

HOSE

1" ID x 3330mm, from Distribution Port to Seed Hopper

1шт.

10

87483976

HOSE

1" ID x 4080mm, from Distribution Port to Seed Hopper

1шт.

11

87483976

HOSE

1" ID x 3630mm, from Distribution Port to Seed Hopper

1шт.

12

87483976

HOSE

1" ID x 3600mm, from Distribution Port to Seed Hopper

1шт.

Выбрано товаров: 12
