(79.103.AA[04]) - VACUUM DELIVERY HOSES RIGHT FOR 12 ROW

Запчасти Case IH 1255 (79.103.AA[04]) - VACUUM DELIVERY HOSES RIGHT FOR 12 ROW (79) - PLANTING

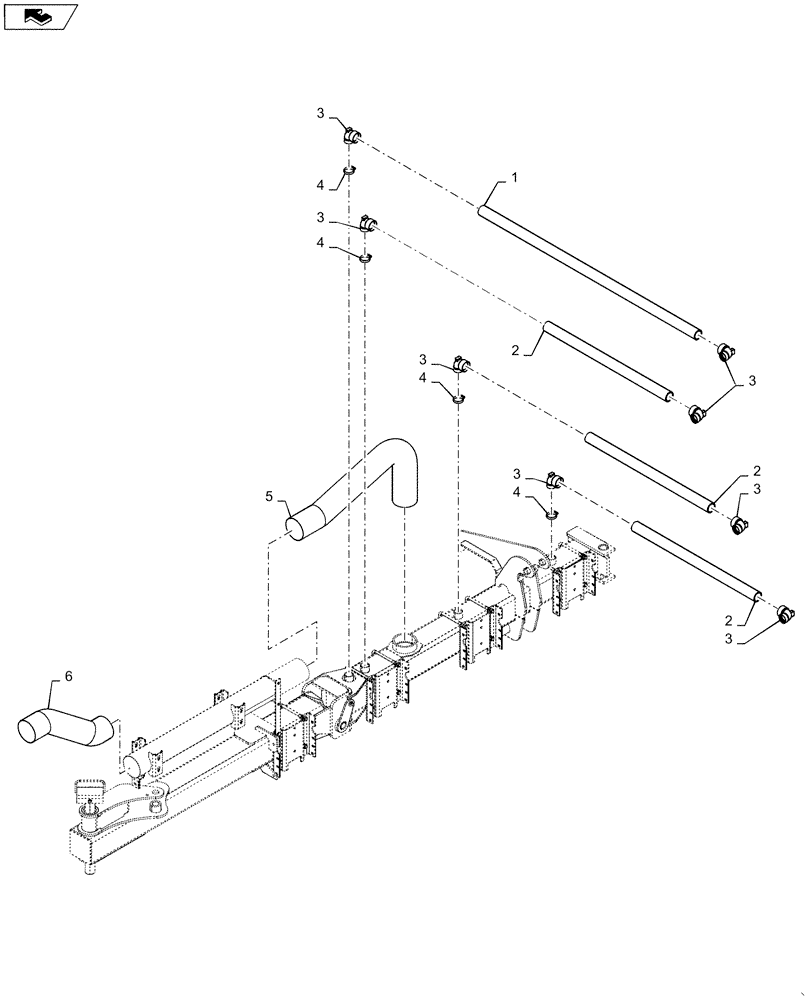

Схема запчастей Case IH 1255 - (79.103.AA[04]) - VACUUM DELIVERY HOSES RIGHT FOR 12 ROW (79) - PLANTING
2
3
3
4
3
3
5
3
home
1
2
4
4
2
3
6
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87501726

HOSE

50 Foot Bulk Roll Cut to Length 1765mm

1шт.

2

87501726

HOSE

50 Foot Bulk Roll Cut to Length 1000mm

3шт.

3

84416530

90 ELBOW

50mm Vaccum

8шт.

4

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

4шт.

5

86991569

INTAKE AIR HOSE

25 Foot Bulk Roll Cut to Length 1447mm

1шт.

6

86991569

INTAKE AIR HOSE

25 Foot Bulk Roll Cut to Length 603mm

1шт.

Выбрано товаров: 6
