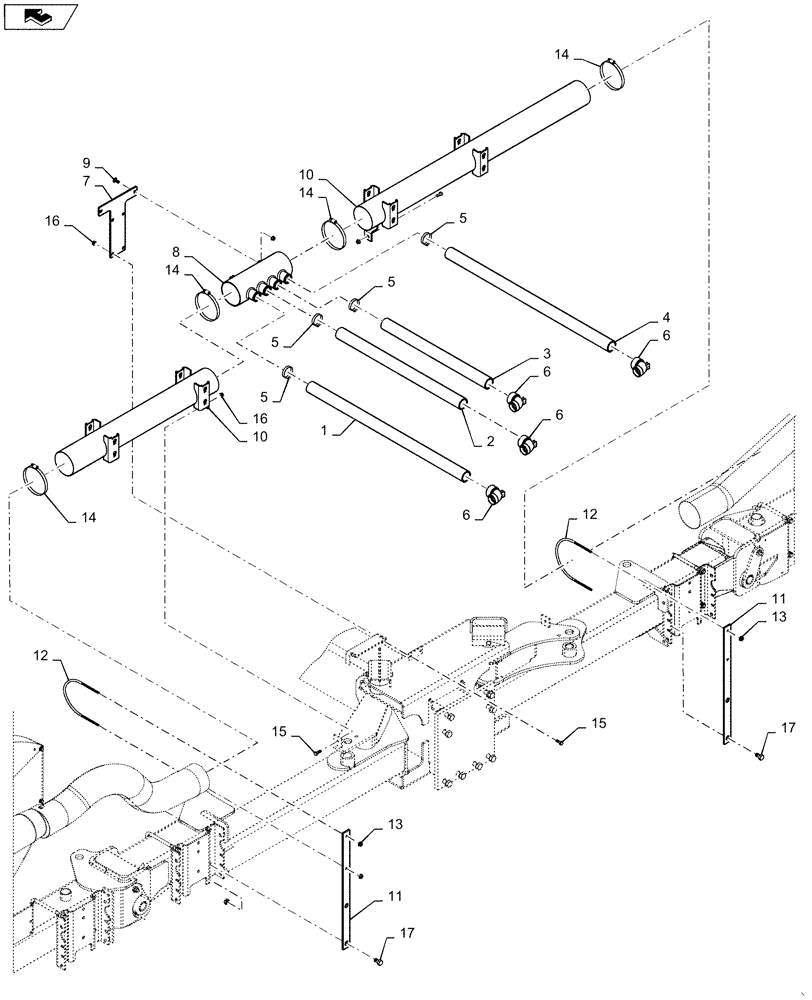

Запчасти Case IH 1255 (79.103.AA[03]) - VACUUM DELIVERY HOSES CENTER FOR 12 ROW (79) - PLANTING

1

87501726

HOSE

50 Foot Bulk Roll Cut to Length 2210mm

1шт.

2

87501726

HOSE

50 Foot Bulk Roll Cut to Length 1630mm

1шт.

3

87501726

HOSE

50 Foot Bulk Roll Cut to Length 1765mm

1шт.

4

87501726

HOSE

50 Foot Bulk Roll Cut to Length 2300mm

1шт.

5

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

4шт.

6

84416530

90 ELBOW

50mm Vaccum

4шт.

7

87475873

BRACKET

Manifold Painted Red

1шт.

8

87659652

MANIFOLD

5.5" x 2"

1шт.

9

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

10

87476390

BRACKET

Short Vaccum Painted Black

2шт.

11

87480600

BRACKET

Support Painted Black

2шт.

12

87478101

U-BOLT

1/4 - 20 x 5.82

2шт.

13

86624020

FLANGE NUT,Flg, 1/4"-20.G5

4шт.

14

84492992

HOSE CLAMP,5.12" - 6"

10шт.

15

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

16

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

6шт.

17

280580

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

4шт.
