(79.103.AA[02]) - VACUUM DELIVERY HOSES LEFT FOR 12 ROW

Запчасти Case IH 1255 (79.103.AA[02]) - VACUUM DELIVERY HOSES LEFT FOR 12 ROW (79) - PLANTING

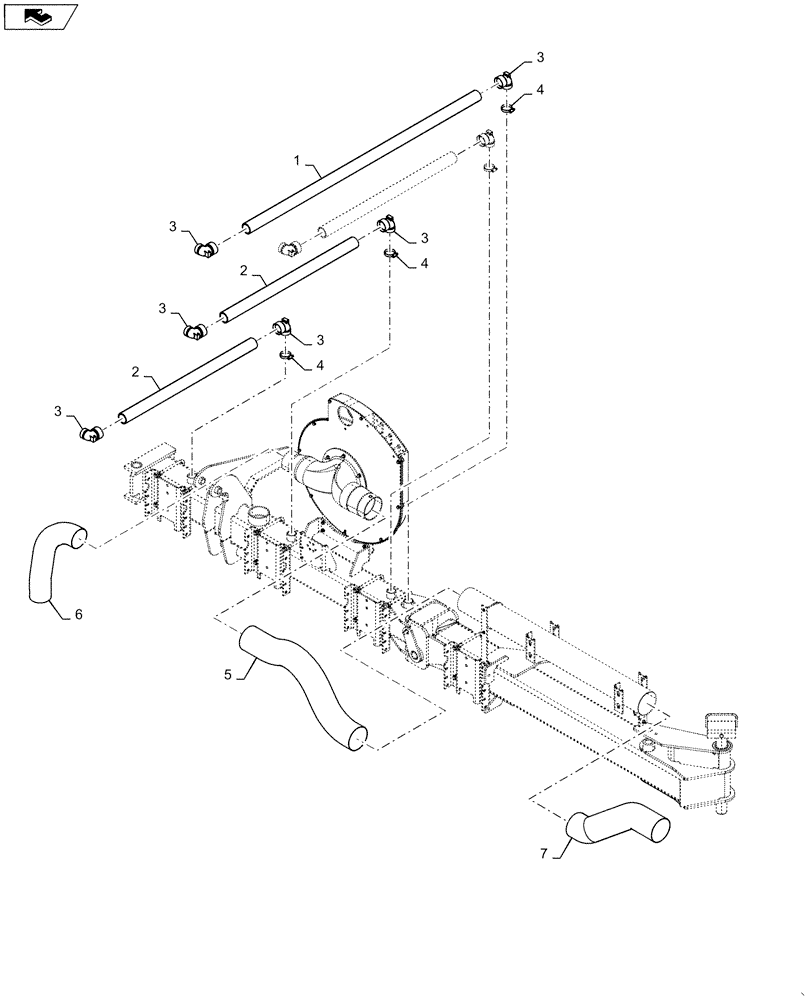

Схема запчастей Case IH 1255 - (79.103.AA[02]) - VACUUM DELIVERY HOSES LEFT FOR 12 ROW (79) - PLANTING
2
4
4
3
4
5
3
3
3
3
6
3
1
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87659671

HOSE

Bulk 50 Foot Roll Cut to 1765mm

1шт.

2

87501728

HOSE

Bulk 50 Foot Roll Cut to 967mm

3шт.

3

84416530

90 ELBOW

50mm Vaccum

8шт.

4

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

4шт.

5

86991569

INTAKE AIR HOSE

25 Foot Bulk Roll Cut to 927mm

1шт.

6

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Roll Cut to 812mm

1шт.

7

86991569

INTAKE AIR HOSE

25 Foot Bulk Roll Cut to 760mm

1шт.
