(63.906.AB[01]) - FERTILIZER COULTER MOUNTING FOR 12 ROW

Запчасти Case IH 1255 (63.906.AB[01]) - FERTILIZER COULTER MOUNTING FOR 12 ROW (63) - CHEMICAL APPLICATORS

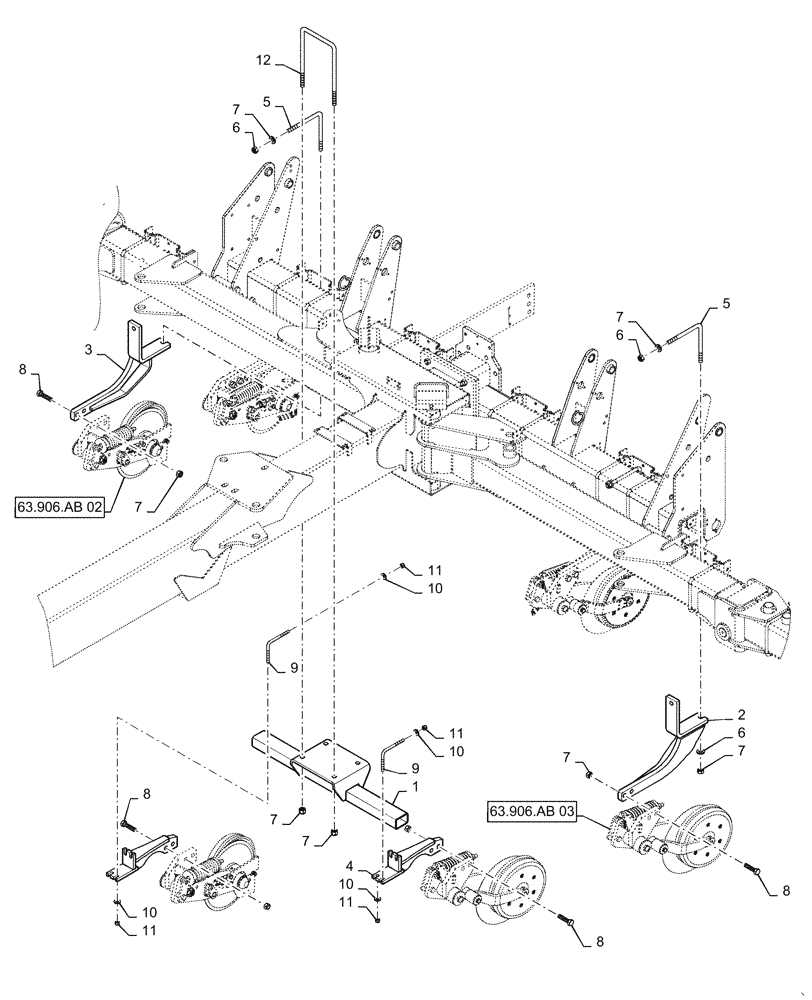

Схема запчастей Case IH 1255 - (63.906.AB[01]) - FERTILIZER COULTER MOUNTING FOR 12 ROW (63) - CHEMICAL APPLICATORS
63.906.ab 02
11
3
10
8
11
5
5
10
7
7
8
11
9
7
8
8
6
2
7
7
7
10
6
1
10
12
4
11
7
6
9
63.906.ab 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87652896

MOUNT

Coulter

1шт.

2

84249368

MOUNT

Coulter Left Painted Black

4шт.

3

84249366

MOUNT

Coulter Right Painted Black

4шт.

4

87687571

MOUNT

Coulter Painted Black

2шт.

5

87670751

BOLT

3/4-9.5

8шт.

6

86624163

WASHER,0.81" ID x 1.5" OD x 0.22" Thk

16шт.

7

9626598

NUT,3/4"-10, GB

40шт.

8

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

20шт.

9

87600201

BOLT

1/2"

4шт.

10

84158486

WASHER,0.53" ID x 1.25" OD x 0.19" Thk

0.531 x 1.25 x 0.188

8шт.

11

9636698

NUT,1/2"-13, GB

8шт.

12

87671598

BOLT

U Bolt 3/4" x 13.75"

2шт.

Выбрано товаров: 12
