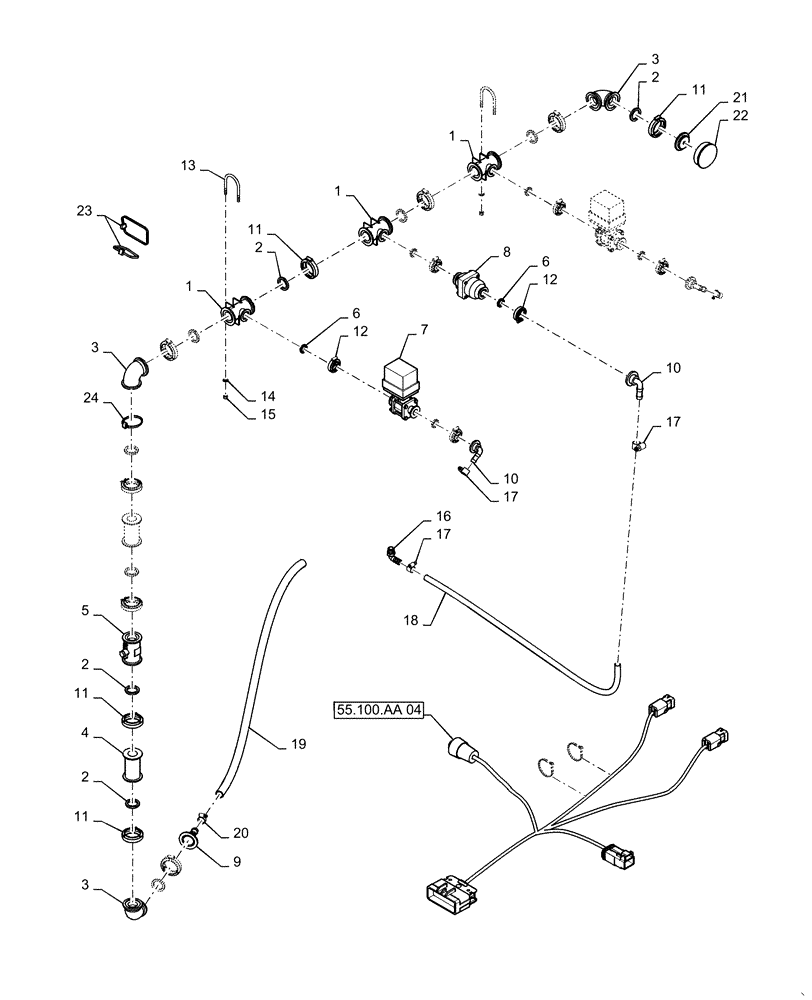

Запчасти Case IH 1255 (63.100.AG[02]) - LIQUID FERTILIZER SECTION CONTROL FOR 12 ROW (63) - CHEMICAL APPLICATORS

1

86984089

TEE,2" Port x 1" Flanged Tee

2" x 2" x 1"

3шт.

2

408348A1

GASKET

1-1/2"

10шт.

3

405782A1

COUPLING,2" x 2" 90 Degree Short Flange

90°

3шт.

4

442255A1

COUPLING,2" x 2" Flange x 41/2"Long

2" Manifold Full Port

2шт.

5

406037A2

METER

Flow

1шт.

6

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1"

6шт.

7

406039A1

SOLENOID VALVE,1" Electric Valve

1" FP Electric Ball

2шт.

8

87505937

CHECK VALVE,1"

100 PSI

1шт.

9

86987616

FITTING,2" Flange x 1" Hose Barb

2" x 1"

1шт.

10

405785A1

ELBOW

1" x 3/4 x 90°

3шт.

11

406040A1

CLAMP,90-100 in/lbs

2"

10шт.

12

406041A1

CLAMP,58.51mm

1"

6шт.

13

87413269

U-BOLT

3/8"

2шт.

14

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

15

86985855

LOCK NUT

3/8"

4шт.

16

405778A1

ELBOW

3/4 Male

1шт.

17

87625624

HOSE CLAMP,14.2mm ID - 26.9mm ID, SAE #10

4шт.

18

241923A1

HOSE

100 Foot Bulk Roll, Cut to Length 1257mm

1шт.

19

134329C3

HOSE

50 Foot Bulk Roll, Cut to Length 1200mm

1шт.

20

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

1шт.

21

87670356

PLUG,2" Flange Plug with 1/4" FPT

2" with 1/4 Gauge Port

1шт.

22

86990418

GAUGE

Pressure 4" 0-100 PSI

1шт.

23

87575103

HARNESS

Liquid Fertilizer

1шт.

24

87502038

CABLE TIE

Small

1шт.
